Complex sparse-matrix class. More...

#include <Matrix_ComplexSparse.hxx>

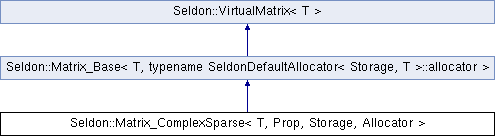

Inheritance diagram for Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >:

Public Types
typedef Allocator::value_type	value_type

typedef Allocator::pointer	pointer

typedef Allocator::const_pointer	const_pointer

typedef Allocator::reference	reference

typedef Allocator::const_reference	const_reference

typedef SeldonDefaultAllocator< VectFull, int >::allocator	AllocatorInt

typedef SeldonDefaultAllocator< VectFull, long >::allocator	AllocatorLong

typedef complex< value_type >	entry_type

typedef complex< value_type >	access_type

typedef complex< value_type >	const_access_type

Public Member Functions
	Matrix_ComplexSparse ()
	Default constructor. More...

	Matrix_ComplexSparse (int i, int j)
	Constructor. More...

	Matrix_ComplexSparse (int i, int j, long real_nz, long imag_nz)
	Constructor. More...

template<class Storage0 , class Allocator0 , class Storage1 , class Allocator1 , class Storage2 , class Allocator2 >
	Matrix_ComplexSparse (int i, int j, Vector< value_type, Storage0, Allocator0 > &real_values, Vector< long, Storage1, Allocator1 > &real_ptr, Vector< int, Storage2, Allocator2 > &real_ind, Vector< value_type, Storage0, Allocator0 > &imag_values, Vector< long, Storage1, Allocator1 > &imag_ptr, Vector< int, Storage2, Allocator2 > &imag_ind)
	Constructor. More...

	Matrix_ComplexSparse (const Matrix_ComplexSparse< T, Prop, Storage, Allocator > &A)
	Copy constructor.

	~Matrix_ComplexSparse ()
	Destructor.

void	Clear ()
	Clears the matrix. More...

template<class Storage0 , class Allocator0 , class Storage1 , class Allocator1 , class Storage2 , class Allocator2 >
void	SetData (int i, int j, Vector< value_type, Storage0, Allocator0 > &real_values, Vector< long, Storage1, Allocator1 > &real_ptr, Vector< int, Storage2, Allocator2 > &real_ind, Vector< value_type, Storage0, Allocator0 > &imag_values, Vector< long, Storage1, Allocator1 > &imag_ptr, Vector< int, Storage2, Allocator2 > &imag_ind)
	Redefines the matrix. More...

void	SetData (int i, int j, long real_nz, pointer real_values, long real_ptr, int real_ind, long imag_nz, pointer imag_values, long imag_ptr, int imag_ind)

void	Nullify ()
	Clears the matrix without releasing memory. More...

void	Reallocate (int i, int j)
	Initialization of an empty matrix i x j.

void	Reallocate (int i, int j, long real_nz, long imag_nz)
	Initialization of a matrix i x j with n non-zero entries.

void	Resize (int i, int j)
	Changing the number of rows and columns. More...

void	Resize (int i, int j, long real_nz, long imag_nz)
	Changing the number of rows, columns and non-zero entries. More...

void	Copy (const Matrix_ComplexSparse< T, Prop, Storage, Allocator > &A)
	Copies a matrix.

long	GetNonZeros () const
	Returns the number of elements stored in memory. More...

long	GetDataSize () const
	Returns the number of elements stored in memory. More...

size_t	GetMemorySize () const
	returns size of A in bytes used to store the matrix

long *	GetRealPtr () const
	Returns (row or column) start indices for the real part. More...

long *	GetImagPtr () const
	Returns (row or column) start indices for the imaginary part. More...

int *	GetRealInd () const
	Returns (row or column) indices of non-zero entries for the real part. More...

int *	GetImagInd () const
	Returns (row or column) indices of non-zero entries for the imaginary part. More...

int	GetRealPtrSize () const
	Returns the length of the array of start indices for the real part. More...

int	GetImagPtrSize () const
	Returns the length of the array of start indices for the imaginary part. More...

long	GetRealIndSize () const
	Returns the length of the array of (column or row) indices for the real part. More...

long	GetImagIndSize () const
	Returns the length of the array of (column or row) indices for the imaginary part. More...

long	GetRealDataSize () const
	Returns the length of the array of (column or row) indices for the real part. More...

long	GetImagDataSize () const
	Returns the length of the array of (column or row) indices for the imaginary part. More...

value_type *	GetRealData () const
	Returns the array of values of the real part. More...

value_type *	GetImagData () const
	Returns the array of values of the imaginary part. More...

const entry_type	operator() (int i, int j) const
	Access operator. More...

value_type &	ValReal (int i, int j)
	Access method. More...

const value_type &	ValReal (int i, int j) const
	Access method. More...

value_type &	ValImag (int i, int j)
	Access method. More...

const value_type &	ValImag (int i, int j) const
	Access method. More...

value_type &	GetReal (int i, int j)
	Access method. More...

const value_type &	GetReal (int i, int j) const
	Access method. More...

value_type &	GetImag (int i, int j)
	Access method. More...

const value_type &	GetImag (int i, int j) const
	Access method. More...

void	Set (int i, int j, const entry_type &x)
	Sets an element (i, j) to a value. More...

void	AddInteraction (int i, int j, const entry_type &x)
	Add a value to a non-zero entry. More...

void	AddInteractionRow (int i, int nb, const IVect &col, const Vector< entry_type > &val, bool sorted=false)
	Adds values to several non-zero entries on a given row.

Matrix_ComplexSparse< T, Prop, Storage, Allocator > &	operator= (const Matrix_ComplexSparse< T, Prop, Storage, Allocator > &A)
	Duplicates a matrix (assignment operator). More...

void	Zero ()
	Resets all non-zero entries to 0-value. More...

void	SetIdentity ()
	Sets the matrix to identity. More...

void	Fill ()
	Fills the non-zero entries with 0, 1, 2, ... More...

void	Fill (const entry_type &x)
	Fills the non-zero entries with a given value. More...

void	FillRand ()
	Fills the non-zero entries randomly. More...

void	Print () const
	Displays the matrix on the standard output. More...

void	Write (string FileName) const
	Writes the matrix in a file. More...

void	Write (ostream &FileStream) const
	Writes the matrix to an output stream. More...

void	WriteText (string FileName, bool cplx=false) const
	Writes the matrix in a file. More...

void	WriteText (ostream &FileStream, bool cplx=false) const
	Writes the matrix to an output stream. More...

void	Read (string FileName)
	Reads the matrix from a file. More...

void	Read (istream &FileStream)
	Reads the matrix from an input stream. More...

void	ReadText (string FileName, bool cplx=false)
	Reads the matrix from a file. More...

void	ReadText (istream &FileStream, bool cplx=false)
	Reads the matrix from an input stream. More...

template<class T , class Prop , class Storage , class Allocator >
void	SetData (int i, int j, long real_nz, typename Matrix_ComplexSparse< T, Prop, Storage, Allocator > ::pointer real_values, long real_ptr, int real_ind, long imag_nz, typename Matrix_ComplexSparse< T, Prop, Storage, Allocator > ::pointer imag_values, long imag_ptr, int imag_ind)
	Redefines the matrix. More...

pointer	GetData () const
	Returns a pointer to the data array. More...

const_pointer	GetDataConst () const
	Returns a const pointer to the data array. More...

void *	GetDataVoid () const
	Returns a pointer of type "void*" to the data array. More...

const void *	GetDataConstVoid () const
	Returns a pointer of type "const void*" to the data array. More...

int	GetM () const
	Returns the number of rows. More...

int	GetM (const Seldon::SeldonTranspose &status) const
	Returns the number of rows of the matrix possibly transposed. More...

int	GetM (const CBLAS_TRANSPOSE &status) const
	Returns the number of rows of the matrix possibly transposed. More...

int	GetN () const
	Returns the number of columns. More...

int	GetN (const Seldon::SeldonTranspose &status) const
	Returns the number of columns of the matrix possibly transposed. More...

int	GetN (const CBLAS_TRANSPOSE &status) const
	Returns the number of columns of the matrix possibly transposed. More...

long	GetSize () const
	Returns the number of elements in the matrix. More...

Protected Attributes
long	real_nz_

long	imag_nz_

long *	real_ptr_

long *	imag_ptr_

int *	real_ind_

int *	imag_ind_

value_type *	real_data_

value_type *	imag_data_

pointer	data_

int	m_

int	n_

Detailed Description

template<class T, class Prop, class Storage, class Allocator = typename SeldonDefaultAllocator<Storage, T>::allocator>
class Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >

Complex sparse-matrix class.

Sparse matrices are defined by: (1) the number of rows and columns; (2) the number of non-zero entries; (3) an array 'ptr_' of start indices (i.e. indices of the first element of each row or column, depending on the storage); (4) an array 'ind_' of column or row indices of each non-zero entry; (5) values of non-zero entries.

: Complex sparse matrices are defined in the same way except that real and imaginary parts are splitted. It is as if two matrices were stored. There are therefore 6 arrays: 'real_ptr_', 'real_ind_', 'real_data_', 'imag_ptr_', 'imag_ind_' and 'imag_data_'.

Definition at line 112 of file Matrix_ComplexSparse.hxx.

Constructor & Destructor Documentation

◆ Matrix_ComplexSparse() [1/4]

template<class T , class Prop , class Storage , class Allocator >

Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::Matrix_ComplexSparse

Default constructor.

Builds an empty 0x0 matrix.

Definition at line 40 of file Matrix_ComplexSparse.cxx.

◆ Matrix_ComplexSparse() [2/4]

template<class T , class Prop , class Storage , class Allocator >

Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::Matrix_ComplexSparse	(	int	i,
		int	j
	)

explicit

Constructor.

Builds a i by j sparse matrix.

Parameters

i	number of rows.
j	number of columns.

Definition at line 61 of file Matrix_ComplexSparse.cxx.

◆ Matrix_ComplexSparse() [3/4]

template<class T , class Prop , class Storage , class Allocator >

Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::Matrix_ComplexSparse	(	int	i,
		int	j,
		long	real_nz,
		long	imag_nz
	)

Constructor.

Builds a sparse matrix of size i by j , with real_nz non-zero elements in the real part of the matrix and imag_nz non-zero elements in the imaginary part of the matrix.

Parameters

i	number of rows.
j	number of columns.
real_nz	number of non-zero elements in the real part.
imag_nz	number of non-zero elements in the imaginary part.

Note: Matrix values are not initialized. Indices of non-zero entries are not initialized either.

Definition at line 89 of file Matrix_ComplexSparse.cxx.

◆ Matrix_ComplexSparse() [4/4]

template<class T , class Prop , class Storage , class Allocator >

template<class Storage0 , class Allocator0 , class Storage1 , class Allocator1 , class Storage2 , class Allocator2 >

Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::Matrix_ComplexSparse	(	int	i,
		int	j,
		Vector< value_type, Storage0, Allocator0 > &	real_values,
		Vector< long, Storage1, Allocator1 > &	real_ptr,
		Vector< int, Storage2, Allocator2 > &	real_ind,
		Vector< value_type, Storage0, Allocator0 > &	imag_values,
		Vector< long, Storage1, Allocator1 > &	imag_ptr,
		Vector< int, Storage2, Allocator2 > &	imag_ind
	)

Constructor.

Builds a i by j sparse matrix with non-zero values and indices provided by 'real_values' (values of the real part), 'real_ptr' (pointers for the real part), 'real_ind' (indices for the real part), 'imag_values' (values of the imaginary part), 'imag_ptr' (pointers for the imaginary part) and 'imag_ind' (indices for the imaginary part). Input vectors are released and are empty on exit.

Parameters

i	number of rows.
j	number of columns.
real_values	values of non-zero entries for the real part.
real_ptr	row or column start indices for the real part.
real_ind	row or column indices for the real part.
imag_values	values of non-zero entries for the imaginary part.
imag_ptr	row or column start indices for the imaginary part.
imag_ind	row or column indices for the imaginary part.

Warning: Input vectors 'real_values', 'real_ptr' and 'real_ind', 'imag_values', 'imag_ptr' and 'imag_ind' are empty on exit.

Definition at line 129 of file Matrix_ComplexSparse.cxx.

Member Function Documentation

◆ AddInteraction()

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::AddInteraction	(	int	i,
		int	j,
		const entry_type &	val
	)

inline

Add a value to a non-zero entry.

This function adds val to the element (i, j), provided that this element is already a non-zero entry. Otherwise a non-zero entry is inserted equal to val.

Parameters

[in]	i	row index.
[in]	j	column index.
[in]	val	value to be added to the element (i, j).

Definition at line 303 of file Matrix_ComplexSparseInline.cxx.

◆ Clear()

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::Clear

Clears the matrix.

This methods is equivalent to the destructor. On exit, the matrix is empty (0x0).

Definition at line 316 of file Matrix_ComplexSparse.cxx.

◆ Fill() [1/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::Fill

Fills the non-zero entries with 0, 1, 2, ...

On exit, the non-zero entries are 0, 1, 2, 3, ... The order of the numbers depends on the storage.

Definition at line 2370 of file Matrix_ComplexSparse.cxx.

◆ Fill() [2/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::Fill ( const entry_type & x )

Fills the non-zero entries with a given value.

Parameters

x	the value to set the non-zero entries to.

Definition at line 2386 of file Matrix_ComplexSparse.cxx.

◆ FillRand()

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::FillRand

Fills the non-zero entries randomly.

Note: The random generator is very basic.

Definition at line 2401 of file Matrix_ComplexSparse.cxx.

◆ GetData()

Matrix_Base< T, typename SeldonDefaultAllocator< Storage, T >::allocator >::pointer Seldon::Matrix_Base< T, typename SeldonDefaultAllocator< Storage, T >::allocator >::GetData

inlineinherited

Returns a pointer to the data array.

Returns a pointer to data, i.e. the data array 'data_'.

Returns: A pointer to the data array.

Definition at line 241 of file Matrix_BaseInline.cxx.

◆ GetDataConst()

Matrix_Base< T, typename SeldonDefaultAllocator< Storage, T >::allocator >::const_pointer Seldon::Matrix_Base< T, typename SeldonDefaultAllocator< Storage, T >::allocator >::GetDataConst

inlineinherited

Returns a const pointer to the data array.

Returns a const pointer to data, i.e. the data array 'data_'.

Returns: A const pointer to the data array.

Definition at line 254 of file Matrix_BaseInline.cxx.

◆ GetDataConstVoid()

const void * Seldon::Matrix_Base< T, typename SeldonDefaultAllocator< Storage, T >::allocator >::GetDataConstVoid

inlineinherited

Returns a pointer of type "const void*" to the data array.

Returns a pointer of type "const void*" to data, i.e. the data array 'data_'.

Returns: A const pointer of type "void*" to the data array.

Definition at line 280 of file Matrix_BaseInline.cxx.

◆ GetDataSize()

template<class T , class Prop , class Storage , class Allocator >

long Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::GetDataSize

inline

Returns the number of elements stored in memory.

Returns the number of elements stored in memory, i.e. the cumulated number of non-zero entries of both the real and the imaginary part.

Returns: The number of elements stored in memory.

Definition at line 69 of file Matrix_ComplexSparseInline.cxx.

◆ GetDataVoid()

void * Seldon::Matrix_Base< T, typename SeldonDefaultAllocator< Storage, T >::allocator >::GetDataVoid

inlineinherited

Returns a pointer of type "void*" to the data array.

Returns a pointer of type "void*" to data, i.e. the data array 'data_'.

Returns: A pointer of type "void*" to the data array.

Definition at line 267 of file Matrix_BaseInline.cxx.

◆ GetImag() [1/2]

template<class T , class Prop , class Storage , class Allocator >

Matrix_ComplexSparse< T, Prop, Storage, Allocator >::value_type & Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::GetImag	(	int	i,
		int	j
	)

Access method.

Returns the imaginary part of element (i, j) if it can be returned as a reference. If the non-zero entry does not exit, it is created

Parameters

[in]	i	row index.
[in]	j	column index.

Returns: Element (i, j) of the matrix.

Definition at line 2255 of file Matrix_ComplexSparse.cxx.

◆ GetImag() [2/2]

template<class T , class Prop , class Storage , class Allocator >

const Matrix_ComplexSparse< T, Prop, Storage, Allocator >::value_type & Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::GetImag	(	int	i,
		int	j
	)		const

inline

Access method.

Returns the imaginary part of element (i, j) if it can be returned as a reference. If the non-zero entry does not exit, it is created

Parameters

[in]	i	row index.
[in]	j	column index.

Returns: Element (i, j) of the matrix.

Definition at line 287 of file Matrix_ComplexSparseInline.cxx.

◆ GetImagData()

template<class T , class Prop , class Storage , class Allocator >

Allocator::value_type * Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::GetImagData

inline

Returns the array of values of the imaginary part.

Returns: The array 'imag_data_' of values of the imaginary part..

Definition at line 248 of file Matrix_ComplexSparseInline.cxx.

◆ GetImagDataSize()

template<class T , class Prop , class Storage , class Allocator >

long Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::GetImagDataSize

inline

Returns the length of the array of (column or row) indices for the imaginary part.

Returns the length of the array ('ind_') of (row or column) indices of non-zero entries for the imaginary part. This array defines non-zero entries indices if coupled with (column or row) start indices.

Returns: The length of the array of (column or row) indices for the imaginary part.

Note: The length of the array of (column or row) indices is the number of non-zero entries.

Definition at line 224 of file Matrix_ComplexSparseInline.cxx.

◆ GetImagInd()

template<class T , class Prop , class Storage , class Allocator >

int * Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::GetImagInd

inline

Returns (row or column) indices of non-zero entries for the imaginary part.

Returns the array ('ind_') of (row or column) indices of non-zero entries for the imaginary part. This array defines non-zero entries indices if coupled with (column or row) start indices.

Returns: The array of (row or column) indices of non-zero entries for the imaginary part.

Definition at line 124 of file Matrix_ComplexSparseInline.cxx.

◆ GetImagIndSize()

template<class T , class Prop , class Storage , class Allocator >

long Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::GetImagIndSize

inline

Returns the length of the array of (column or row) indices for the imaginary part.

Returns the length of the array ('ind_') of (row or column) indices of non-zero entries for the imaginary part. This array defines non-zero entries indices if coupled with (column or row) start indices.

Returns: The length of the array of (column or row) indices for the imaginary part.

Note: The length of the array of (column or row) indices is the number of non-zero entries.

Definition at line 186 of file Matrix_ComplexSparseInline.cxx.

◆ GetImagPtr()

template<class T , class Prop , class Storage , class Allocator >

long * Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::GetImagPtr

inline

Returns (row or column) start indices for the imaginary part.

Returns the array ('ptr_') of start indices for the imaginary part.

Returns: The array of start indices for the imaginary part.

Definition at line 93 of file Matrix_ComplexSparseInline.cxx.

◆ GetImagPtrSize()

template<class T , class Prop , class Storage , class Allocator >

int Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::GetImagPtrSize

inline

Returns the length of the array of start indices for the imaginary part.

Returns: The length of the array of start indices for the imaginary part.

Definition at line 148 of file Matrix_ComplexSparseInline.cxx.

◆ GetM() [1/3]

template<class T >

int Seldon::VirtualMatrix< T >::GetM

inlineinherited

Returns the number of rows.

Returns: The number of rows.

Definition at line 69 of file Matrix_BaseInline.cxx.

◆ GetM() [2/3]

template<class T >

int Seldon::VirtualMatrix< T >::GetM ( const CBLAS_TRANSPOSE & status ) const

inlineinherited

Returns the number of rows of the matrix possibly transposed.

Parameters

status assumed status about the transposition of the matrix.

Returns: The number of rows of the possibly-transposed matrix.

Definition at line 122 of file Matrix_BaseInline.cxx.

◆ GetM() [3/3]

template<class T >

int Seldon::VirtualMatrix< T >::GetM ( const Seldon::SeldonTranspose & status ) const

inlineinherited

Returns the number of rows of the matrix possibly transposed.

Parameters

status assumed status about the transposition of the matrix.

Returns: The number of rows of the possibly-transposed matrix.

Definition at line 92 of file Matrix_BaseInline.cxx.

◆ GetN() [1/3]

template<class T >

int Seldon::VirtualMatrix< T >::GetN

inlineinherited

Returns the number of columns.

Returns: The number of columns.

Definition at line 80 of file Matrix_BaseInline.cxx.

◆ GetN() [2/3]

template<class T >

int Seldon::VirtualMatrix< T >::GetN ( const CBLAS_TRANSPOSE & status ) const

inlineinherited

Returns the number of columns of the matrix possibly transposed.

Parameters

status assumed status about the transposition of the matrix.

Returns: The number of columns of the possibly-transposed matrix.

Definition at line 137 of file Matrix_BaseInline.cxx.

◆ GetN() [3/3]

template<class T >

int Seldon::VirtualMatrix< T >::GetN ( const Seldon::SeldonTranspose & status ) const

inlineinherited

Returns the number of columns of the matrix possibly transposed.

Parameters

status assumed status about the transposition of the matrix.

Returns: The number of columns of the possibly-transposed matrix.

Definition at line 107 of file Matrix_BaseInline.cxx.

◆ GetNonZeros()

template<class T , class Prop , class Storage , class Allocator >

long Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::GetNonZeros

inline

Returns the number of elements stored in memory.

Returns the number of elements stored in memory, i.e. the cumulated number of non-zero entries of both the real and the imaginary part.

Returns: The number of elements stored in memory.

Definition at line 55 of file Matrix_ComplexSparseInline.cxx.

◆ GetReal() [1/2]

template<class T , class Prop , class Storage , class Allocator >

Matrix_ComplexSparse< T, Prop, Storage, Allocator >::value_type & Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::GetReal	(	int	i,
		int	j
	)

Access method.

Returns the real part of element (i, j) if it can be returned as a reference. If the non-zero entry does not exit, it is created

Parameters

[in]	i	row index.
[in]	j	column index.

Returns: Element (i, j) of the matrix.

Definition at line 2190 of file Matrix_ComplexSparse.cxx.

◆ GetReal() [2/2]

template<class T , class Prop , class Storage , class Allocator >

const Matrix_ComplexSparse< T, Prop, Storage, Allocator >::value_type & Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::GetReal	(	int	i,
		int	j
	)		const

inline

Access method.

Returns the real part of element (i, j) if it can be returned as a reference. If the non-zero entry does not exit, it is created

Parameters

[in]	i	row index.
[in]	j	column index.

Returns: Element (i, j) of the matrix.

Definition at line 270 of file Matrix_ComplexSparseInline.cxx.

◆ GetRealData()

template<class T , class Prop , class Storage , class Allocator >

Allocator::value_type * Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::GetRealData

inline

Returns the array of values of the real part.

Returns: The array 'real_data_' of values of the real part..

Definition at line 236 of file Matrix_ComplexSparseInline.cxx.

◆ GetRealDataSize()

template<class T , class Prop , class Storage , class Allocator >

long Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::GetRealDataSize

inline

Returns the length of the array of (column or row) indices for the real part.

Returns the length of the array ('ind_') of (row or column) indices of non-zero entries for the real part. This array defines non-zero entries indices if coupled with (column or row) start indices.

Returns: The length of the array of (column or row) indices for the real part.

Note: The length of the array of (column or row) indices is the number of non-zero entries.

Definition at line 205 of file Matrix_ComplexSparseInline.cxx.

◆ GetRealInd()

template<class T , class Prop , class Storage , class Allocator >

int * Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::GetRealInd

inline

Returns (row or column) indices of non-zero entries for the real part.

Returns the array ('ind_') of (row or column) indices of non-zero entries for the real part. This array defines non-zero entries indices if coupled with (column or row) start indices.

Returns: The array of (row or column) indices of non-zero entries for the real part.

Definition at line 108 of file Matrix_ComplexSparseInline.cxx.

◆ GetRealIndSize()

template<class T , class Prop , class Storage , class Allocator >

long Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::GetRealIndSize

inline

Returns the length of the array of (column or row) indices for the real part.

Returns the length of the array ('ind_') of (row or column) indices of non-zero entries for the real part. This array defines non-zero entries indices if coupled with (column or row) start indices.

Returns: The length of the array of (column or row) indices for the real part.

Note: The length of the array of (column or row) indices is the number of non-zero entries.

Definition at line 167 of file Matrix_ComplexSparseInline.cxx.

◆ GetRealPtr()

template<class T , class Prop , class Storage , class Allocator >

long * Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::GetRealPtr

inline

Returns (row or column) start indices for the real part.

Returns the array ('ptr_') of start indices for the real part.

Returns: The array of start indices for the real part.

Definition at line 81 of file Matrix_ComplexSparseInline.cxx.

◆ GetRealPtrSize()

template<class T , class Prop , class Storage , class Allocator >

int Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::GetRealPtrSize

inline

Returns the length of the array of start indices for the real part.

Returns: The length of the array of start indices for the real part.

Definition at line 136 of file Matrix_ComplexSparseInline.cxx.

◆ GetSize()

template<class T >

long Seldon::VirtualMatrix< T >::GetSize

inlineinherited

Returns the number of elements in the matrix.

Returns the number of elements in the matrix, i.e. the number of rows multiplied by the number of columns.

Returns: The number of elements in the matrix.

Definition at line 153 of file Matrix_BaseInline.cxx.

◆ Nullify()

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::Nullify

Clears the matrix without releasing memory.

On exit, the matrix is empty and the memory has not been released. It is useful for low level manipulations on a Matrix instance.

Definition at line 698 of file Matrix_ComplexSparse.cxx.

◆ operator()()

template<class T , class Prop , class Storage , class Allocator >

const Matrix_ComplexSparse< T, Prop, Storage, Allocator >::entry_type Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::operator()	(	int	i,
		int	j
	)		const

Access operator.

Returns the value of element (i, j).

Parameters

i	row index.
j	column index.

Returns: Element (i, j) of the matrix.

Definition at line 1896 of file Matrix_ComplexSparse.cxx.

◆ operator=()

template<class T , class Prop , class Storage , class Allocator >

Matrix_ComplexSparse< T, Prop, Storage, Allocator > & Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::operator= ( const Matrix_ComplexSparse< T, Prop, Storage, Allocator > & A )

inline

Duplicates a matrix (assignment operator).

Parameters

A	matrix to be copied.

Note: Memory is duplicated: 'A' is therefore independent from the current instance after the copy.

Definition at line 347 of file Matrix_ComplexSparseInline.cxx.

◆ Print()

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::Print

Displays the matrix on the standard output.

Displays elements on the standard output, in text format. Each row is displayed on a single line and elements of a row are delimited by tabulations.

Definition at line 2421 of file Matrix_ComplexSparse.cxx.

◆ Read() [1/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::Read ( istream & FileStream )

Reads the matrix from an input stream.

Reads a matrix in binary format from an input stream.

Parameters

FileStream input stream

Definition at line 2588 of file Matrix_ComplexSparse.cxx.

◆ Read() [2/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::Read ( string FileName )

Reads the matrix from a file.

Reads a matrix stored in binary format in a file.

Parameters

FileName input file name.

Definition at line 2563 of file Matrix_ComplexSparse.cxx.

◆ ReadText() [1/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::ReadText	(	istream &	FileStream,
		bool	cplx = `false`
	)

Reads the matrix from an input stream.

Reads a matrix from a stream in text format.

Parameters

FileStream input stream.

Definition at line 2662 of file Matrix_ComplexSparse.cxx.

◆ ReadText() [2/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::ReadText	(	string	FileName,
		bool	cplx = `false`
	)

Reads the matrix from a file.

Reads the matrix from a file in text format.

Parameters

FileName input file name.

Definition at line 2637 of file Matrix_ComplexSparse.cxx.

◆ Resize() [1/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::Resize	(	int	i,
		int	j
	)

Changing the number of rows and columns.

Parameters

i	number of rows
j	number of columns

Definition at line 1174 of file Matrix_ComplexSparse.cxx.

◆ Resize() [2/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::Resize	(	int	i,
		int	j,
		long	real_nz,
		long	imag_nz
	)

Changing the number of rows, columns and non-zero entries.

Parameters

i	number of rows
j	number of columns Previous entries are kept during the operation

Definition at line 1192 of file Matrix_ComplexSparse.cxx.

◆ Set()

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::Set	(	int	i,
		int	j,
		const entry_type &	val
	)

inline

Sets an element (i, j) to a value.

This function sets val to the element (i, j)

Parameters

[in]	i	row index.
[in]	j	column index.
[in]	val	A(i, j) = val

Definition at line 331 of file Matrix_ComplexSparseInline.cxx.

◆ SetData() [1/2]

template<class T , class Prop , class Storage , class Allocator = typename SeldonDefaultAllocator<Storage, T>::allocator>

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::SetData	(	int	i,
		int	j,
		long	real_nz,
		typename Matrix_ComplexSparse< T, Prop, Storage, Allocator > ::pointer	real_values,
		long *	real_ptr,
		int *	real_ind,
		long	imag_nz,
		typename Matrix_ComplexSparse< T, Prop, Storage, Allocator > ::pointer	imag_values,
		long *	imag_ptr,
		int *	imag_ind
	)

Redefines the matrix.

It clears the matrix and sets it to a new matrix defined by arrays 'real_values' (values of the real part), 'real_ptr' (pointers for the real part), 'real_ind' (indices for the real part), 'imag_values' (values of the imaginary part), 'imag_ptr' (pointers for the imaginary part) and 'imag_ind' (indices for the imaginary part).

Parameters

i	number of rows.
j	number of columns.
real_nz	number of non-zero entries (real part).
real_values	values of non-zero entries for the real part.
real_ptr	row or column start indices for the real part.
real_ind	row or column indices for the real part.
imag_nz	number of non-zero entries (imaginary part).
imag_values	values of non-zero entries for the imaginary part.
imag_ptr	row or column start indices for the imaginary part.
imag_ind	row or column indices for the imaginary part.

Warning: On exit, arrays 'real_values', 'real_ptr', 'real_ind', 'imag_values', 'imag_ptr' and 'imag_ind' are managed by the matrix. For example, it means that the destructor will release those arrays; therefore, the user mustn't release those arrays.

Definition at line 667 of file Matrix_ComplexSparse.cxx.

◆ SetData() [2/2]

template<class T , class Prop , class Storage , class Allocator >

template<class Storage0 , class Allocator0 , class Storage1 , class Allocator1 , class Storage2 , class Allocator2 >

void Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::SetData	(	int	i,
		int	j,
		Vector< value_type, Storage0, Allocator0 > &	real_values,
		Vector< long, Storage1, Allocator1 > &	real_ptr,
		Vector< int, Storage2, Allocator2 > &	real_ind,
		Vector< value_type, Storage0, Allocator0 > &	imag_values,
		Vector< long, Storage1, Allocator1 > &	imag_ptr,
		Vector< int, Storage2, Allocator2 > &	imag_ind
	)

Redefines the matrix.

It clears the matrix and sets it to a new matrix defined by 'real_values' (values of the real part), 'real_ptr' (pointers for the real part), 'real_ind' (indices for the real part), 'imag_values' (values of the imaginary part), 'imag_ptr' (pointers for the imaginary part) and 'imag_ind' (indices for the imaginary part). Input vectors are released and are empty on exit.

Parameters

i	number of rows.
j	number of columns.
real_values	values of non-zero entries for the real part.
real_ptr	row or column start indices for the real part.
real_ind	row or column indices for the real part.
imag_values	values of non-zero entries for the imaginary part.
imag_ptr	row or column start indices for the imaginary part.
imag_ind	row or column indices for the imaginary part.

Warning: Input vectors 'real_values', 'real_ptr' and 'real_ind', 'imag_values', 'imag_ptr' and 'imag_ind' are empty on exit.

Definition at line 487 of file Matrix_ComplexSparse.cxx.

◆ SetIdentity()

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::SetIdentity

Sets the matrix to identity.

This method fills the diagonal of the matrix with ones. It can be applied to non square matrix.

Definition at line 2331 of file Matrix_ComplexSparse.cxx.

◆ ValImag() [1/2]

template<class T , class Prop , class Storage , class Allocator >

Matrix_ComplexSparse< T, Prop, Storage, Allocator >::value_type & Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::ValImag	(	int	i,
		int	j
	)

Access method.

Returns the imaginary part of element (i, j) if it can be returned as a reference.

Parameters

[in]	i	row index.
[in]	j	column index.

Returns: Element (i, j) of the matrix.

Exceptions

WrongArgument No reference can be returned because the element is a zero entry (not stored in the matrix).

Definition at line 2087 of file Matrix_ComplexSparse.cxx.

◆ ValImag() [2/2]

template<class T , class Prop , class Storage , class Allocator >

const Matrix_ComplexSparse< T, Prop, Storage, Allocator >::value_type & Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::ValImag	(	int	i,
		int	j
	)		const

Access method.

Returns the imaginary part of element (i, j) if it can be returned as a reference.

Parameters

[in]	i	row index.
[in]	j	column index.

Returns: Element (i, j) of the matrix.

Exceptions

WrongArgument No reference can be returned because the element is a zero entry (not stored in the matrix).

Definition at line 2139 of file Matrix_ComplexSparse.cxx.

◆ ValReal() [1/2]

template<class T , class Prop , class Storage , class Allocator >

Matrix_ComplexSparse< T, Prop, Storage, Allocator >::value_type & Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::ValReal	(	int	i,
		int	j
	)

Access method.

Returns the real value of element (i, j) if it can be returned as a reference.

Parameters

[in]	i	row index.
[in]	j	column index.

Returns: Element (i, j) of the matrix.

Exceptions

WrongArgument No reference can be returned because the element is a zero entry (not stored in the matrix).

Definition at line 1983 of file Matrix_ComplexSparse.cxx.

◆ ValReal() [2/2]

template<class T , class Prop , class Storage , class Allocator >

const Matrix_ComplexSparse< T, Prop, Storage, Allocator >::value_type & Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::ValReal	(	int	i,
		int	j
	)		const

Access method.

Returns the real value of element (i, j) if it can be returned as a reference.

Parameters

[in]	i	row index.
[in]	j	column index.

Returns: Element (i, j) of the matrix.

Exceptions

WrongArgument No reference can be returned because the element is a zero entry (not stored in the matrix).

Definition at line 2035 of file Matrix_ComplexSparse.cxx.

◆ Write() [1/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::Write ( ostream & FileStream ) const

Writes the matrix to an output stream.

Stores the matrix in an output stream in binary format.

Parameters

FileStream output stream.

Definition at line 2464 of file Matrix_ComplexSparse.cxx.

◆ Write() [2/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::Write ( string FileName ) const

Writes the matrix in a file.

Stores the matrix in a file in binary format.

Parameters

FileName output file name.

Definition at line 2439 of file Matrix_ComplexSparse.cxx.

◆ WriteText() [1/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::WriteText	(	ostream &	FileStream,
		bool	cplx = `false`
	)		const

Writes the matrix to an output stream.

Stores the matrix in a file in ascii format. The entries are written in coordinate format (row column value) 1-index convention is used

Parameters

FileStream output stream.

Definition at line 2537 of file Matrix_ComplexSparse.cxx.

◆ WriteText() [2/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::WriteText	(	string	FileName,
		bool	cplx = `false`
	)		const

Writes the matrix in a file.

Stores the matrix in a file in ascii format. The entries are written in coordinate format (row column value) 1-index convention is used

Parameters

FileName output file name.

Definition at line 2507 of file Matrix_ComplexSparse.cxx.

◆ Zero()

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >::Zero

Resets all non-zero entries to 0-value.

The sparsity pattern remains unchanged.

Definition at line 2316 of file Matrix_ComplexSparse.cxx.

The documentation for this class was generated from the following files:

matrix_sparse/complex/Matrix_ComplexSparse.hxx
matrix_sparse/complex/Matrix_ComplexSparse.cxx
matrix_sparse/complex/Matrix_ComplexSparseInline.cxx

Public Types

Public Member Functions

Protected Attributes

Detailed Description

template<class T, class Prop, class Storage, class Allocator = typename SeldonDefaultAllocator<Storage, T>::allocator> class Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >

Constructor & Destructor Documentation

◆ Matrix_ComplexSparse() [1/4]

◆ Matrix_ComplexSparse() [2/4]

◆ Matrix_ComplexSparse() [3/4]

◆ Matrix_ComplexSparse() [4/4]

Member Function Documentation

◆ AddInteraction()

◆ Clear()

◆ Fill() [1/2]

◆ Fill() [2/2]

◆ FillRand()

◆ GetData()

◆ GetDataConst()

◆ GetDataConstVoid()

◆ GetDataSize()

◆ GetDataVoid()

◆ GetImag() [1/2]

◆ GetImag() [2/2]

◆ GetImagData()

◆ GetImagDataSize()

◆ GetImagInd()

◆ GetImagIndSize()

◆ GetImagPtr()

◆ GetImagPtrSize()

◆ GetM() [1/3]

◆ GetM() [2/3]

◆ GetM() [3/3]

◆ GetN() [1/3]

◆ GetN() [2/3]

◆ GetN() [3/3]

◆ GetNonZeros()

◆ GetReal() [1/2]

◆ GetReal() [2/2]

◆ GetRealData()

◆ GetRealDataSize()

◆ GetRealInd()

◆ GetRealIndSize()

◆ GetRealPtr()

◆ GetRealPtrSize()

◆ GetSize()

◆ Nullify()

◆ operator()()

◆ operator=()

◆ Print()

◆ Read() [1/2]

◆ Read() [2/2]

◆ ReadText() [1/2]

◆ ReadText() [2/2]

◆ Resize() [1/2]

◆ Resize() [2/2]

◆ Set()

◆ SetData() [1/2]

◆ SetData() [2/2]

◆ SetIdentity()

◆ ValImag() [1/2]

◆ ValImag() [2/2]

◆ ValReal() [1/2]

◆ ValReal() [2/2]

◆ Write() [1/2]

◆ Write() [2/2]

◆ WriteText() [1/2]

◆ WriteText() [2/2]

◆ Zero()

template<class T, class Prop, class Storage, class Allocator = typename SeldonDefaultAllocator<Storage, T>::allocator>
class Seldon::Matrix_ComplexSparse< T, Prop, Storage, Allocator >
