Sparse-matrix class. More...

#include <Matrix_Sparse.hxx>

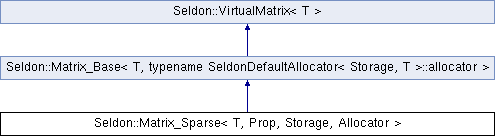

Inheritance diagram for Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >:

Public Types
typedef Allocator::value_type	value_type

typedef Allocator::pointer	pointer

typedef Allocator::const_pointer	const_pointer

typedef Allocator::reference	reference

typedef Allocator::const_reference	const_reference

typedef SeldonDefaultAllocator< VectFull, int >::allocator	AllocatorInt

typedef SeldonDefaultAllocator< VectFull, long >::allocator	AllocatorLong

typedef value_type	entry_type

typedef value_type	access_type

typedef value_type	const_access_type

Public Member Functions
	Matrix_Sparse ()
	Default constructor. More...

	Matrix_Sparse (int i, int j)
	Constructor. More...

	Matrix_Sparse (int i, int j, long nz)
	Constructor. More...

template<class Storage0 , class Allocator0 , class Storage1 , class Allocator1 , class Storage2 , class Allocator2 >
	Matrix_Sparse (int i, int j, Vector< T, Storage0, Allocator0 > &values, Vector< long, Storage1, Allocator1 > &ptr, Vector< int, Storage2, Allocator2 > &ind)
	Constructor. More...

	Matrix_Sparse (const Matrix_Sparse< T, Prop, Storage, Allocator > &A)
	Copy constructor.

	~Matrix_Sparse ()
	Destructor.

void	Clear ()
	Clears the matrix. More...

template<class Storage0 , class Allocator0 , class Storage1 , class Allocator1 , class Storage2 , class Allocator2 >
void	SetData (int i, int j, Vector< T, Storage0, Allocator0 > &values, Vector< long, Storage1, Allocator1 > &ptr, Vector< int, Storage2, Allocator2 > &ind)
	Redefines the matrix. More...

void	SetData (int i, int j, long nz, pointer values, long ptr, int ind)

void	Nullify ()
	Clears the matrix without releasing memory. More...

void	Reallocate (int i, int j)
	Initialization of an empty sparse matrix with i rows and j columns. More...

void	Reallocate (int i, int j, long nz)
	Initialization of a sparse matrix with i rows and j columns. More...

void	Resize (int i, int j)
	Reallocates memory to resize the matrix and keeps previous entries. More...

void	Resize (int i, int j, long nz)
	Reallocates memory to resize the matrix and keeps previous entries. More...

void	Copy (const Matrix_Sparse< T, Prop, Storage, Allocator > &A)
	Copies a matrix.

long	GetNonZeros () const
	Returns the number of non-zero elements. More...

long	GetDataSize () const
	Returns the number of elements stored in memory. More...

size_t	GetMemorySize () const
	returns size of A in bytes used to store the matrix

long *	GetPtr () const
	Returns (row or column) start indices. More...

int *	GetInd () const
	Returns (row or column) indices of non-zero entries. More...

int	GetPtrSize () const
	Returns the length of the array of start indices. More...

long	GetIndSize () const
	Returns the length of the array of (column or row) indices. More...

void	FillPtrInt (Vector< int > &) const
	Fills vector ptr with integers instead of longs.

const value_type	operator() (int i, int j) const
	Access operator. More...

value_type &	Val (int i, int j)
	Access method. More...

value_type &	Get (int i, int j)
	Access method. More...

const value_type &	Val (int i, int j) const
	Access method. More...

const value_type &	Get (int i, int j) const
	Access method. More...

void	AddInteraction (int i, int j, const T &val)
	Add a value to a non-zero entry. More...

void	AddInteractionRow (int i, int nb, const Vector< int > &col, const Vector< T > &val, bool sorted=false)
	Adds values to several non-zero entries on a given row.

void	Set (int i, int j, const T &x)
	Sets an element (i, j) to a value. More...

void	SetEntry (int i, int j, const T &x)
	Sets an element (i, j) to a value. More...

Matrix_Sparse< T, Prop, Storage, Allocator > &	operator= (const Matrix_Sparse< T, Prop, Storage, Allocator > &A)
	Duplicates a matrix (assignment operator). More...

void	Zero ()
	Resets all non-zero entries to 0-value. More...

void	SetIdentity ()
	Sets the matrix to identity. More...

void	Fill ()
	Fills the non-zero entries with 0, 1, 2, ... More...

template<class T0 >
void	Fill (const T0 &x)
	Fills the non-zero entries with a given value. More...

void	FillRand ()
	Fills the non-zero entries randomly. More...

void	FillRand (long Nelement)
	Fills the matrix with random elements. More...

void	FillRand (long Nelement, const T &x)
	Fills the matrix with one value inserted at random positions. More...

void	Print () const
	Displays the matrix on the standard output. More...

void	Write (string FileName) const
	Writes the matrix in a file. More...

void	Write (ostream &FileStream) const
	Writes the matrix to an output stream. More...

void	WriteText (string FileName, bool cplx=false) const
	Writes the matrix in a file. More...

void	WriteText (ostream &FileStream, bool cplx=false) const
	Writes the matrix to an output stream. More...

void	Read (string FileName)
	Reads the matrix from a file. More...

void	Read (istream &FileStream)
	Reads the matrix from an input stream. More...

void	ReadText (string FileName, bool cplx=false)
	Reads the matrix from a file. More...

void	ReadText (istream &FileStream, bool cplx=false)
	Reads the matrix from an input stream. More...

template<class T , class Prop , class Storage , class Allocator >
void	SetData (int i, int j, long nz, typename Matrix_Sparse< T, Prop, Storage, Allocator > ::pointer values, long ptr, int ind)
	Redefines the matrix. More...

pointer	GetData () const
	Returns a pointer to the data array. More...

const_pointer	GetDataConst () const
	Returns a const pointer to the data array. More...

void *	GetDataVoid () const
	Returns a pointer of type "void*" to the data array. More...

const void *	GetDataConstVoid () const
	Returns a pointer of type "const void*" to the data array. More...

int	GetM () const
	Returns the number of rows. More...

int	GetM (const Seldon::SeldonTranspose &status) const
	Returns the number of rows of the matrix possibly transposed. More...

int	GetM (const CBLAS_TRANSPOSE &status) const
	Returns the number of rows of the matrix possibly transposed. More...

int	GetN () const
	Returns the number of columns. More...

int	GetN (const Seldon::SeldonTranspose &status) const
	Returns the number of columns of the matrix possibly transposed. More...

int	GetN (const CBLAS_TRANSPOSE &status) const
	Returns the number of columns of the matrix possibly transposed. More...

long	GetSize () const
	Returns the number of elements in the matrix. More...

Protected Attributes
long	nz_

long *	ptr_

int *	ind_

pointer	data_

int	m_

int	n_

Detailed Description

template<class T, class Prop, class Storage, class Allocator = typename SeldonDefaultAllocator<Storage, T>::allocator>
class Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >

Sparse-matrix class.

Sparse matrices are defined by: (1) the number of rows and columns; (2) the number of non-zero entries; (3) an array 'ptr_' of start indices (i.e. indices of the first element of each row or column, depending on the storage); (4) an array 'ind_' of column or row indices of each non-zero entry; (5) values of non-zero entries.

Definition at line 45 of file Matrix_Sparse.hxx.

Constructor & Destructor Documentation

◆ Matrix_Sparse() [1/4]

template<class T , class Prop , class Storage , class Allocator >

Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::Matrix_Sparse

inline

Default constructor.

Builds an empty 0x0 matrix.

Definition at line 53 of file Matrix_SparseInline.cxx.

◆ Matrix_Sparse() [2/4]

template<class T , class Prop , class Storage , class Allocator >

Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::Matrix_Sparse	(	int	i,
		int	j
	)

inlineexplicit

Constructor.

Builds a i by j sparse matrix.

Parameters

i	number of rows.
j	number of columns.

Definition at line 69 of file Matrix_SparseInline.cxx.

◆ Matrix_Sparse() [3/4]

template<class T , class Prop , class Storage , class Allocator >

Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::Matrix_Sparse	(	int	i,
		int	j,
		long	nz
	)

inlineexplicit

Constructor.

Builds a sparse matrix of size i by j , with nz non-zero elements.

Parameters

i	number of rows.
j	number of columns.
nz	number of non-zero elements.

Note: Matrix values are not initialized. Indices of non-zero entries are not initialized either.

Definition at line 91 of file Matrix_SparseInline.cxx.

◆ Matrix_Sparse() [4/4]

template<class T , class Prop , class Storage , class Allocator >

template<class Storage0 , class Allocator0 , class Storage1 , class Allocator1 , class Storage2 , class Allocator2 >

Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::Matrix_Sparse	(	int	i,
		int	j,
		Vector< T, Storage0, Allocator0 > &	values,
		Vector< long, Storage1, Allocator1 > &	ptr,
		Vector< int, Storage2, Allocator2 > &	ind
	)

Constructor.

Builds a i by j sparse matrix with non-zero values and indices provided by 'values' (values), 'ptr' (pointers) and 'ind' (indices). Input vectors are released and are empty on exit.

Parameters

i	number of rows.
j	number of columns.
values	values of non-zero entries.
ptr	row or column start indices.
ind	row or column indices.

Warning: Input vectors 'values', 'ptr' and 'ind' are empty on exit.

Definition at line 65 of file Matrix_Sparse.cxx.

Member Function Documentation

◆ AddInteraction()

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::AddInteraction	(	int	i,
		int	j,
		const T &	val
	)

inline

Add a value to a non-zero entry.

This function adds val to the element (i, j), provided that this element is already a non-zero entry. Otherwise a non-zero entry is inserted equal to val.

Parameters

[in]	i	row index.
[in]	j	column index.
[in]	val	value to be added to the element (i, j).

Definition at line 222 of file Matrix_SparseInline.cxx.

◆ Clear()

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::Clear

Clears the matrix.

This methods is equivalent to the destructor. On exit, the matrix is empty (0x0).

Definition at line 159 of file Matrix_Sparse.cxx.

◆ Fill() [1/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::Fill

Fills the non-zero entries with 0, 1, 2, ...

On exit, the non-zero entries are 0, 1, 2, 3, ... The order of the numbers depends on the storage.

Definition at line 1196 of file Matrix_Sparse.cxx.

◆ Fill() [2/2]

template<class T , class Prop , class Storage , class Allocator >

template<class T0 >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::Fill ( const T0 & x )

Fills the non-zero entries with a given value.

Parameters

x	the value to set the non-zero entries to.

Definition at line 1209 of file Matrix_Sparse.cxx.

◆ FillRand() [1/3]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::FillRand

Fills the non-zero entries randomly.

Note: The random generator is very basic.

Definition at line 1223 of file Matrix_Sparse.cxx.

◆ FillRand() [2/3]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::FillRand ( long Nelement )

Fills the matrix with random elements.

The matrix is cleared and then filled with n random elements. Both the position of the elements and their values are randomly generated. On exit, the matrix may not have n non-zero elements: it is possible that the randomly-generated positions of two elements are the same.

Parameters

[in] Nelement the number of random elements to be inserted in the matrix.

Note: The random generator is very basic.

Definition at line 1244 of file Matrix_Sparse.cxx.

◆ FillRand() [3/3]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::FillRand	(	long	Nelement,
		const T &	x
	)

Fills the matrix with one value inserted at random positions.

The matrix is cleared and then filled with n random elements. Only the position of the elements is randomly generated. Their value will always be x. On exit, the matrix may not have n non-zero elements: it is possible that the randomly-generated positions of two elements are the same.

Parameters

[in]	Nelement	the number of random elements to be inserted in the matrix.
[in]	x	the value to be inserted.

Note: The random generator is very basic.

Definition at line 1293 of file Matrix_Sparse.cxx.

◆ Get() [1/2]

template<class T , class Prop , class Storage , class Allocator >

Matrix_Sparse< T, Prop, Storage, Allocator >::value_type & Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::Get	(	int	i,
		int	j
	)

Access method.

Returns reference to element (i, j)

Parameters

[in]	i	row index.
[in]	j	column index.

Returns: Element (i, j) of the matrix. If the element does not belong to sparsity pattern of the matrix, the matrix is resized.

Definition at line 1088 of file Matrix_Sparse.cxx.

◆ Get() [2/2]

template<class T , class Prop , class Storage , class Allocator >

const Matrix_Sparse< T, Prop, Storage, Allocator >::value_type & Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::Get	(	int	i,
		int	j
	)		const

inline

Access method.

Returns reference to element (i, j)

Parameters

[in]	i	row index.
[in]	j	column index.

Returns: Element (i, j) of the matrix.

Definition at line 206 of file Matrix_SparseInline.cxx.

◆ GetData()

Matrix_Base< T, typename SeldonDefaultAllocator< Storage, T >::allocator >::pointer Seldon::Matrix_Base< T, typename SeldonDefaultAllocator< Storage, T >::allocator >::GetData

inlineinherited

Returns a pointer to the data array.

Returns a pointer to data, i.e. the data array 'data_'.

Returns: A pointer to the data array.

Definition at line 241 of file Matrix_BaseInline.cxx.

◆ GetDataConst()

Matrix_Base< T, typename SeldonDefaultAllocator< Storage, T >::allocator >::const_pointer Seldon::Matrix_Base< T, typename SeldonDefaultAllocator< Storage, T >::allocator >::GetDataConst

inlineinherited

Returns a const pointer to the data array.

Returns a const pointer to data, i.e. the data array 'data_'.

Returns: A const pointer to the data array.

Definition at line 254 of file Matrix_BaseInline.cxx.

◆ GetDataConstVoid()

const void * Seldon::Matrix_Base< T, typename SeldonDefaultAllocator< Storage, T >::allocator >::GetDataConstVoid

inlineinherited

Returns a pointer of type "const void*" to the data array.

Returns a pointer of type "const void*" to data, i.e. the data array 'data_'.

Returns: A const pointer of type "void*" to the data array.

Definition at line 280 of file Matrix_BaseInline.cxx.

◆ GetDataSize()

template<class T , class Prop , class Storage , class Allocator >

long Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::GetDataSize

inline

Returns the number of elements stored in memory.

Returns the number of elements stored in memory, i.e. the number of non-zero entries.

Returns: The number of elements stored in memory.

Definition at line 138 of file Matrix_SparseInline.cxx.

◆ GetDataVoid()

void * Seldon::Matrix_Base< T, typename SeldonDefaultAllocator< Storage, T >::allocator >::GetDataVoid

inlineinherited

Returns a pointer of type "void*" to the data array.

Returns a pointer of type "void*" to data, i.e. the data array 'data_'.

Returns: A pointer of type "void*" to the data array.

Definition at line 267 of file Matrix_BaseInline.cxx.

◆ GetInd()

template<class T , class Prop , class Storage , class Allocator >

int * Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::GetInd

inline

Returns (row or column) indices of non-zero entries.

Returns the array ('ind_') of (row or column) indices of non-zero entries. This array defines non-zero entries indices if coupled with (column or row) start indices.

Returns: The array of (row or column) indices of non-zero entries.

Definition at line 165 of file Matrix_SparseInline.cxx.

◆ GetIndSize()

template<class T , class Prop , class Storage , class Allocator >

long Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::GetIndSize

inline

Returns the length of the array of (column or row) indices.

Returns the length of the array ('ind_') of (row or column) indices of non-zero entries. This array defines non-zero entries indices if coupled with (column or row) start indices.

Returns: The length of the array of (column or row) indices.

Note: The length of the array of (column or row) indices is the number of non-zero entries.

Definition at line 192 of file Matrix_SparseInline.cxx.

◆ GetM() [1/3]

template<class T >

int Seldon::VirtualMatrix< T >::GetM

inlineinherited

Returns the number of rows.

Returns: The number of rows.

Definition at line 69 of file Matrix_BaseInline.cxx.

◆ GetM() [2/3]

template<class T >

int Seldon::VirtualMatrix< T >::GetM ( const CBLAS_TRANSPOSE & status ) const

inlineinherited

Returns the number of rows of the matrix possibly transposed.

Parameters

status assumed status about the transposition of the matrix.

Returns: The number of rows of the possibly-transposed matrix.

Definition at line 122 of file Matrix_BaseInline.cxx.

◆ GetM() [3/3]

template<class T >

int Seldon::VirtualMatrix< T >::GetM ( const Seldon::SeldonTranspose & status ) const

inlineinherited

Returns the number of rows of the matrix possibly transposed.

Parameters

status assumed status about the transposition of the matrix.

Returns: The number of rows of the possibly-transposed matrix.

Definition at line 92 of file Matrix_BaseInline.cxx.

◆ GetN() [1/3]

template<class T >

int Seldon::VirtualMatrix< T >::GetN

inlineinherited

Returns the number of columns.

Returns: The number of columns.

Definition at line 80 of file Matrix_BaseInline.cxx.

◆ GetN() [2/3]

template<class T >

int Seldon::VirtualMatrix< T >::GetN ( const CBLAS_TRANSPOSE & status ) const

inlineinherited

Returns the number of columns of the matrix possibly transposed.

Parameters

status assumed status about the transposition of the matrix.

Returns: The number of columns of the possibly-transposed matrix.

Definition at line 137 of file Matrix_BaseInline.cxx.

◆ GetN() [3/3]

template<class T >

int Seldon::VirtualMatrix< T >::GetN ( const Seldon::SeldonTranspose & status ) const

inlineinherited

Returns the number of columns of the matrix possibly transposed.

Parameters

status assumed status about the transposition of the matrix.

Returns: The number of columns of the possibly-transposed matrix.

Definition at line 107 of file Matrix_BaseInline.cxx.

◆ GetNonZeros()

template<class T , class Prop , class Storage , class Allocator >

long Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::GetNonZeros

inline

Returns the number of non-zero elements.

Returns: The number of non-zero elements.

Definition at line 125 of file Matrix_SparseInline.cxx.

◆ GetPtr()

template<class T , class Prop , class Storage , class Allocator >

long * Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::GetPtr

inline

Returns (row or column) start indices.

Returns the array ('ptr_') of start indices.

Returns: The array of start indices.

Definition at line 150 of file Matrix_SparseInline.cxx.

◆ GetPtrSize()

template<class T , class Prop , class Storage , class Allocator >

int Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::GetPtrSize

inline

Returns the length of the array of start indices.

Returns: The length of the array of start indices.

Definition at line 176 of file Matrix_SparseInline.cxx.

◆ GetSize()

template<class T >

long Seldon::VirtualMatrix< T >::GetSize

inlineinherited

Returns the number of elements in the matrix.

Returns the number of elements in the matrix, i.e. the number of rows multiplied by the number of columns.

Returns: The number of elements in the matrix.

Definition at line 153 of file Matrix_BaseInline.cxx.

◆ Nullify()

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::Nullify

Clears the matrix without releasing memory.

On exit, the matrix is empty and the memory has not been released. It is useful for low level manipulations on a Matrix instance.

Definition at line 356 of file Matrix_Sparse.cxx.

◆ operator()()

template<class T , class Prop , class Storage , class Allocator >

const Matrix_Sparse< T, Prop, Storage, Allocator >::value_type Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::operator()	(	int	i,
		int	j
	)		const

Access operator.

Returns the value of element (i, j).

Parameters

i	row index.
j	column index.

Returns: Element (i, j) of the matrix.

Definition at line 940 of file Matrix_Sparse.cxx.

◆ operator=()

template<class T , class Prop , class Storage , class Allocator >

Matrix_Sparse< T, Prop, Storage, Allocator > & Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::operator= ( const Matrix_Sparse< T, Prop, Storage, Allocator > & A )

inline

Duplicates a matrix (assignment operator).

Parameters

A	matrix to be copied.

Note: Memory is duplicated: 'A' is therefore independent from the current instance after the copy.

Definition at line 275 of file Matrix_SparseInline.cxx.

◆ Print()

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::Print

Displays the matrix on the standard output.

Displays elements on the standard output, in text format. Each row is displayed on a single line and elements of a row are delimited by tabulations.

Definition at line 1326 of file Matrix_Sparse.cxx.

◆ Read() [1/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::Read ( istream & FileStream )

Reads the matrix from an input stream.

Reads a matrix in binary format from an input stream.

Parameters

FileStream input stream

Definition at line 1490 of file Matrix_Sparse.cxx.

◆ Read() [2/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::Read ( string FileName )

Reads the matrix from a file.

Reads a matrix stored in binary format in a file.

Parameters

FileName input file name.

Definition at line 1465 of file Matrix_Sparse.cxx.

◆ ReadText() [1/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::ReadText	(	istream &	FileStream,
		bool	cplx = `false`
	)

Reads the matrix from an input stream.

Reads a matrix from a stream in text format.

Parameters

FileStream input stream.

Definition at line 1559 of file Matrix_Sparse.cxx.

◆ ReadText() [2/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::ReadText	(	string	FileName,
		bool	cplx = `false`
	)

Reads the matrix from a file.

Reads the matrix from a file in text format.

Parameters

FileName	input file name.
cplx	if true the real part and imaginary part are given in two separate columns, otherwise the complex values are written (a,b)

Definition at line 1534 of file Matrix_Sparse.cxx.

◆ Reallocate() [1/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::Reallocate	(	int	i,
		int	j
	)

Initialization of an empty sparse matrix with i rows and j columns.

Parameters

i	number of rows
j	number of columns

Definition at line 373 of file Matrix_Sparse.cxx.

◆ Reallocate() [2/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::Reallocate	(	int	i,
		int	j,
		long	nz
	)

Initialization of a sparse matrix with i rows and j columns.

Parameters

i	number of rows
j	number of columns
nz	number of non-zero entries

Definition at line 432 of file Matrix_Sparse.cxx.

◆ Resize() [1/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::Resize	(	int	i,
		int	j
	)

Reallocates memory to resize the matrix and keeps previous entries.

On exit, the matrix is a i x j matrix.

Parameters

i	new number of rows.
j	new number of columns.

Definition at line 596 of file Matrix_Sparse.cxx.

◆ Resize() [2/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::Resize	(	int	i,
		int	j,
		long	nz
	)

Reallocates memory to resize the matrix and keeps previous entries.

On exit, the matrix is a i x j matrix.

Parameters

i	new number of rows.
j	new number of columns.
nz	number of non-zero elements.

Definition at line 614 of file Matrix_Sparse.cxx.

◆ Set()

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::Set	(	int	i,
		int	j,
		const T &	val
	)

inline

Sets an element (i, j) to a value.

This function sets val to the element (i, j)

Parameters

[in]	i	row index.
[in]	j	column index.
[in]	val	A(i, j) = val

Definition at line 246 of file Matrix_SparseInline.cxx.

◆ SetData() [1/2]

template<class T , class Prop , class Storage , class Allocator = typename SeldonDefaultAllocator<Storage, T>::allocator>

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::SetData	(	int	i,
		int	j,
		long	nz,
		typename Matrix_Sparse< T, Prop, Storage, Allocator > ::pointer	values,
		long *	ptr,
		int *	ind
	)

Redefines the matrix.

It clears the matrix and sets it to a new matrix defined by arrays 'values' (values), 'ptr' (pointers) and 'ind' (indices).

Parameters

i	number of rows.
j	number of columns.
nz	number of non-zero entries.
values	values of non-zero entries.
ptr	row or column start indices.
ind	row or column indices.

Warning: On exit, arrays 'values', 'ptr' and 'ind' are managed by the matrix. For example, it means that the destructor will released those arrays; therefore, the user mustn't release those arrays.

Definition at line 333 of file Matrix_Sparse.cxx.

◆ SetData() [2/2]

template<class T , class Prop , class Storage , class Allocator >

template<class Storage0 , class Allocator0 , class Storage1 , class Allocator1 , class Storage2 , class Allocator2 >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::SetData	(	int	i,
		int	j,
		Vector< T, Storage0, Allocator0 > &	values,
		Vector< long, Storage1, Allocator1 > &	ptr,
		Vector< int, Storage2, Allocator2 > &	ind
	)

Redefines the matrix.

It clears the matrix and sets it to a new matrix defined by 'values' (values), 'ptr' (pointers) and 'ind' (indices). Input vectors are released and are empty on exit.

Parameters

i	number of rows.
j	number of columns.
values	values of non-zero entries.
ptr	row or column start indices.
ind	row or column indices.

Warning: Input vectors 'values', 'ptr' and 'ind' are empty on exit.

Definition at line 241 of file Matrix_Sparse.cxx.

◆ SetEntry()

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::SetEntry	(	int	i,
		int	j,
		const T &	val
	)

inline

Sets an element (i, j) to a value.

This function sets val to the element (i, j)

Parameters

[in]	i	row index.
[in]	j	column index.
[in]	val	A(i, j) = val

Definition at line 260 of file Matrix_SparseInline.cxx.

◆ SetIdentity()

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::SetIdentity

Sets the matrix to identity.

This method fills the diagonal of the matrix with ones. It can be applied to non square matrix.

Definition at line 1162 of file Matrix_Sparse.cxx.

◆ Val() [1/2]

template<class T , class Prop , class Storage , class Allocator >

Matrix_Sparse< T, Prop, Storage, Allocator >::value_type & Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::Val	(	int	i,
		int	j
	)

Access method.

Returns the value of element (i, j) if it can be returned as a reference.

Parameters

[in]	i	row index.
[in]	j	column index.

Returns: Element (i, j) of the matrix.

Exceptions

WrongArgument No reference can be returned because the element is a zero entry (not stored in the matrix).

Definition at line 987 of file Matrix_Sparse.cxx.

◆ Val() [2/2]

template<class T , class Prop , class Storage , class Allocator >

const Matrix_Sparse< T, Prop, Storage, Allocator >::value_type & Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::Val	(	int	i,
		int	j
	)		const

Access method.

Returns the value of element (i, j) if it can be returned as a reference.

Parameters

[in]	i	row index.
[in]	j	column index.

Returns: Element (i, j) of the matrix.

Exceptions

WrongArgument No reference can be returned because the element is a zero entry (not stored in the matrix).

Definition at line 1038 of file Matrix_Sparse.cxx.

◆ Write() [1/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::Write ( ostream & FileStream ) const

Writes the matrix to an output stream.

Stores the matrix in an output stream in binary format.

Parameters

FileStream output stream.

Definition at line 1369 of file Matrix_Sparse.cxx.

◆ Write() [2/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::Write ( string FileName ) const

Writes the matrix in a file.

Stores the matrix in a file in binary format.

Parameters

FileName output file name.

Definition at line 1344 of file Matrix_Sparse.cxx.

◆ WriteText() [1/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::WriteText	(	ostream &	FileStream,
		bool	cplx = `false`
	)		const

Writes the matrix to an output stream.

Stores the matrix in a file in ascii format. The entries are written in coordinate format (row column value) 1-index convention is used

Parameters

FileStream	output stream.
cplx	if true the real part and imaginary part are given in two separate columns, otherwise the complex values are written (a,b)

Definition at line 1439 of file Matrix_Sparse.cxx.

◆ WriteText() [2/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::WriteText	(	string	FileName,
		bool	cplx = `false`
	)		const

Writes the matrix in a file.

Stores the matrix in a file in ascii format. The entries are written in coordinate format (row column value) 1-index convention is used

Parameters

FileName	output file name.
cplx	if true the real part and imaginary part are written in two separate columns, otherwise the complex values are written (a,b)

Definition at line 1406 of file Matrix_Sparse.cxx.

◆ Zero()

template<class T , class Prop , class Storage , class Allocator >

void Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >::Zero

Resets all non-zero entries to 0-value.

The sparsity pattern remains unchanged.

Definition at line 1150 of file Matrix_Sparse.cxx.

The documentation for this class was generated from the following files:

matrix_sparse/Matrix_Sparse.hxx
matrix_sparse/Matrix_Sparse.cxx
matrix_sparse/Matrix_SparseInline.cxx

Public Types

Public Member Functions

Protected Attributes

Detailed Description

template<class T, class Prop, class Storage, class Allocator = typename SeldonDefaultAllocator<Storage, T>::allocator> class Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >

Constructor & Destructor Documentation

◆ Matrix_Sparse() [1/4]

◆ Matrix_Sparse() [2/4]

◆ Matrix_Sparse() [3/4]

◆ Matrix_Sparse() [4/4]

Member Function Documentation

◆ AddInteraction()

◆ Clear()

◆ Fill() [1/2]

◆ Fill() [2/2]

◆ FillRand() [1/3]

◆ FillRand() [2/3]

◆ FillRand() [3/3]

◆ Get() [1/2]

◆ Get() [2/2]

◆ GetData()

◆ GetDataConst()

◆ GetDataConstVoid()

◆ GetDataSize()

◆ GetDataVoid()

◆ GetInd()

◆ GetIndSize()

◆ GetM() [1/3]

◆ GetM() [2/3]

◆ GetM() [3/3]

◆ GetN() [1/3]

◆ GetN() [2/3]

◆ GetN() [3/3]

◆ GetNonZeros()

◆ GetPtr()

◆ GetPtrSize()

◆ GetSize()

◆ Nullify()

◆ operator()()

◆ operator=()

◆ Print()

◆ Read() [1/2]

◆ Read() [2/2]

◆ ReadText() [1/2]

◆ ReadText() [2/2]

◆ Reallocate() [1/2]

◆ Reallocate() [2/2]

◆ Resize() [1/2]

◆ Resize() [2/2]

◆ Set()

◆ SetData() [1/2]

◆ SetData() [2/2]

◆ SetEntry()

◆ SetIdentity()

◆ Val() [1/2]

◆ Val() [2/2]

◆ Write() [1/2]

◆ Write() [2/2]

◆ WriteText() [1/2]

◆ WriteText() [2/2]

◆ Zero()

template<class T, class Prop, class Storage, class Allocator = typename SeldonDefaultAllocator<Storage, T>::allocator>
class Seldon::Matrix_Sparse< T, Prop, Storage, Allocator >
