Matrix class made of a collection of matrices. More...

#include <MatrixCollection.hxx>

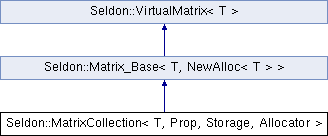

Inheritance diagram for Seldon::MatrixCollection< T, Prop, Storage, Allocator >:

Public Types
typedef T::value_type	value_type

typedef T::pointer	pointer

typedef T::const_pointer	const_pointer

typedef T::reference	reference

typedef T::const_reference	const_reference

typedef T	matrix_type

typedef matrix_type *	matrix_pointer

typedef matrix_type &	matrix_reference

typedef Matrix< matrix_type, Prop, Storage, NewAlloc< T > >	collection_type

typedef collection_type &	collection_reference

Public Member Functions
	MatrixCollection ()
	Default constructor. More...

	MatrixCollection (int i, int j)
	Main constructor. More...

	MatrixCollection (const MatrixCollection< T, Prop, Storage, Allocator > &A)
	Copy constructor.

	~MatrixCollection ()
	Destructor.

void	Clear ()
	Clears the matrix. More...

void	Nullify ()
	Clears the matrix. More...

void	Nullify (int i, int j)
	Clears a given underlying matrix. More...

void	Deallocate ()
	Deallocates underlying the matrices.

int	GetM () const
	Returns the number of rows. More...

int	GetMmatrix () const
	Returns the number of rows. More...

int	GetM (int i) const
	Returns the number of rows in an underlying matrix. More...

int	GetN () const
	Returns the number of columns. More...

int	GetNmatrix () const
	Returns the number of columns. More...

int	GetN (int j) const
	Returns the number of columns in an underlying matrix. More...

int	GetSize () const
	Returns the number of elements stored in memory. More...

int	GetDataSize () const
	Returns the number of elements stored in memory. More...

size_t	GetMemorySize () const
	Returns size of A in bytes used to store the matrix.

void	Reallocate (int i, int j)
	Reallocates memory to resize the matrix collection. More...

template<class T0 , class Prop0 , class Storage0 , class Allocator0 >
void	SetMatrix (int m, int n, const Matrix< T0, Prop0, Storage0, Allocator0 > &)
	Sets an underlying matrix in the matrix collection. More...

template<class T0 , class Prop0 , class Allocator0 >
void	SetMatrix (int m, int n, const Matrix< T0, Prop0, RowSparse, Allocator0 > &)
	Sets an underlying matrix in the matrix collection. More...

matrix_reference	GetMatrix (int i, int j)
	Access to an underlying matrix. More...

const_matrix_reference	GetMatrix (int i, int j) const
	Access to an underlying matrix. More...

value_type	operator() (int i, int j) const
	Access operator. More...

MatrixCollection< T, Prop, Storage, Allocator > &	operator= (const MatrixCollection< T, Prop, Storage, Allocator > &A)
	Duplicates a matrix collection (assignment operator). More...

void	Copy (const MatrixCollection< T, Prop, Storage, Allocator > &A)
	Duplicates a matrix collection. More...

void	Print () const
	Displays the matrix collection on the standard output. More...

void	Print (int m, int n) const
	Displays an underlying matrix on the standard output. More...

void	Write (string FileName, bool with_size) const
	Writes the matrix collection in a file. More...

void	Write (ostream &FileStream, bool with_size) const
	Writes the matrix collection to an output stream. More...

void	WriteText (string FileName) const
	Writes the matrix collection in a file. More...

void	WriteText (ostream &FileStream) const
	Writes the matrix collection to an output stream. More...

void	Read (string FileName)
	Reads the matrix collection from a file. More...

void	Read (istream &FileStream)
	Reads the matrix collection from an input stream. More...

pointer	GetData () const
	Returns a pointer to the data array. More...

const_pointer	GetDataConst () const
	Returns a const pointer to the data array. More...

void *	GetDataVoid () const
	Returns a pointer of type "void*" to the data array. More...

const void *	GetDataConstVoid () const
	Returns a pointer of type "const void*" to the data array. More...

int	GetM (const Seldon::SeldonTranspose &status) const
	Returns the number of rows of the matrix possibly transposed. More...

int	GetM (const CBLAS_TRANSPOSE &status) const
	Returns the number of rows of the matrix possibly transposed. More...

int	GetN (const Seldon::SeldonTranspose &status) const
	Returns the number of columns of the matrix possibly transposed. More...

int	GetN (const CBLAS_TRANSPOSE &status) const
	Returns the number of columns of the matrix possibly transposed. More...

Public Attributes
const typedef matrix_type *	const_matrix_pointer

const typedef matrix_type &	const_matrix_reference

const typedef collection_type	const_collection_type

const typedef collection_type &	const_collection_reference

Protected Attributes
int	nz_
	Number of non-zero elements.

int	Mmatrix_
	Number of rows of matrices.

int	Nmatrix_
	Number of columns of matrices.

Vector< int, VectFull, CallocAlloc< int > >	Mlocal_
	Number of rows in the underlying matrices.

Vector< int, VectFull, CallocAlloc< int > >	Mlocal_sum_
	Cumulative number of rows in the underlying matrices.

Vector< int, VectFull, CallocAlloc< int > >	Nlocal_
	Number of columns in the underlying matrices.

Vector< int, VectFull, CallocAlloc< int > >	Nlocal_sum_
	Cumulative number of columns in the underlying matrices.

collection_type	matrix_
	Pointers of the underlying matrices.

pointer	data_

int	m_

int	n_

Detailed Description

template<class T, class Prop, class Storage, class Allocator = NewAlloc<T>>
class Seldon::MatrixCollection< T, Prop, Storage, Allocator >

Matrix class made of a collection of matrices.

Definition at line 37 of file MatrixCollection.hxx.

Constructor & Destructor Documentation

◆ MatrixCollection() [1/2]

template<class T , class Prop , class Storage , class Allocator >

Seldon::MatrixCollection< T, Prop, Storage, Allocator >::MatrixCollection

Default constructor.

On exit, the matrix is an empty 0x0 matrix.

Definition at line 45 of file MatrixCollection.cxx.

◆ MatrixCollection() [2/2]

template<class T , class Prop , class Storage , class Allocator >

Seldon::MatrixCollection< T, Prop, Storage, Allocator >::MatrixCollection	(	int	i,
		int	j
	)

Main constructor.

Builds a i x j collection matrix.

Parameters

[in]	i	number of rows of matrices.
[in]	j	number of columns of matrices.

Definition at line 64 of file MatrixCollection.cxx.

Member Function Documentation

◆ Clear()

template<class T , class Prop , class Storage , class Allocator >

void Seldon::MatrixCollection< T, Prop, Storage, Allocator >::Clear

Clears the matrix.

Destructs the matrix.

Warning: On exit, the matrix is an empty 0x0 matrix.

Definition at line 85 of file MatrixCollection.cxx.

◆ Copy()

template<class T , class Prop , class Storage , class Allocator >

void Seldon::MatrixCollection< T, Prop, Storage, Allocator >::Copy ( const MatrixCollection< T, Prop, Storage, Allocator > & A )

Duplicates a matrix collection.

Parameters

[in] A matrix collection to be copied.

Note: Memory is duplicated: A is therefore independent from the current instance after the copy.

Definition at line 358 of file MatrixCollection.cxx.

◆ GetData()

Matrix_Base< T, NewAlloc< T > >::pointer Seldon::Matrix_Base< T, NewAlloc< T > >::GetData

inlineinherited

Returns a pointer to the data array.

Returns a pointer to data, i.e. the data array 'data_'.

Returns: A pointer to the data array.

Definition at line 241 of file Matrix_BaseInline.cxx.

◆ GetDataConst()

Matrix_Base< T, NewAlloc< T > >::const_pointer Seldon::Matrix_Base< T, NewAlloc< T > >::GetDataConst

inlineinherited

Returns a const pointer to the data array.

Returns a const pointer to data, i.e. the data array 'data_'.

Returns: A const pointer to the data array.

Definition at line 254 of file Matrix_BaseInline.cxx.

◆ GetDataConstVoid()

const void * Seldon::Matrix_Base< T, NewAlloc< T > >::GetDataConstVoid

inlineinherited

Returns a pointer of type "const void*" to the data array.

Returns a pointer of type "const void*" to data, i.e. the data array 'data_'.

Returns: A const pointer of type "void*" to the data array.

Definition at line 280 of file Matrix_BaseInline.cxx.

◆ GetDataSize()

template<class T , class Prop , class Storage , class Allocator >

int Seldon::MatrixCollection< T, Prop, Storage, Allocator >::GetDataSize

inline

Returns the number of elements stored in memory.

Returns: The number of elements stored in memory.

Definition at line 168 of file MatrixCollectionInline.cxx.

◆ GetDataVoid()

void * Seldon::Matrix_Base< T, NewAlloc< T > >::GetDataVoid

inlineinherited

Returns a pointer of type "void*" to the data array.

Returns a pointer of type "void*" to data, i.e. the data array 'data_'.

Returns: A pointer of type "void*" to the data array.

Definition at line 267 of file Matrix_BaseInline.cxx.

◆ GetM() [1/4]

template<class T , class Prop , class Storage , class Allocator >

int Seldon::MatrixCollection< T, Prop, Storage, Allocator >::GetM

inline

Returns the number of rows.

Returns: the total number of rows. It is the sum of the number of rows in the underlying matrices.

Definition at line 69 of file MatrixCollectionInline.cxx.

◆ GetM() [2/4]

template<class T >

int Seldon::VirtualMatrix< T >::GetM ( const CBLAS_TRANSPOSE & status ) const

inlineinherited

Returns the number of rows of the matrix possibly transposed.

Parameters

status assumed status about the transposition of the matrix.

Returns: The number of rows of the possibly-transposed matrix.

Definition at line 122 of file Matrix_BaseInline.cxx.

◆ GetM() [3/4]

template<class T >

int Seldon::VirtualMatrix< T >::GetM ( const Seldon::SeldonTranspose & status ) const

inlineinherited

Returns the number of rows of the matrix possibly transposed.

Parameters

status assumed status about the transposition of the matrix.

Returns: The number of rows of the possibly-transposed matrix.

Definition at line 92 of file Matrix_BaseInline.cxx.

◆ GetM() [4/4]

template<class T , class Prop , class Storage , class Allocator >

int Seldon::MatrixCollection< T, Prop, Storage, Allocator >::GetM ( int i ) const

inline

Returns the number of rows in an underlying matrix.

Parameters

[in] i row index of the underlying matrix.

Returns: The number of rows in the underlying matrices with row index i.

Definition at line 93 of file MatrixCollectionInline.cxx.

◆ GetMatrix() [1/2]

template<class T , class Prop , class Storage , class Allocator >

MatrixCollection< T, Prop, Storage, Allocator >::matrix_reference Seldon::MatrixCollection< T, Prop, Storage, Allocator >::GetMatrix	(	int	i,
		int	j
	)

inline

Access to an underlying matrix.

Returns the underlying matrix (i, j).

Parameters

[in]	i	row index.
[in]	j	column index.

Returns: The matrix collection (i, j).

Definition at line 198 of file MatrixCollectionInline.cxx.

◆ GetMatrix() [2/2]

template<class T , class Prop , class Storage , class Allocator >

MatrixCollection< T, Prop, Storage, Allocator >::const_matrix_reference Seldon::MatrixCollection< T, Prop, Storage, Allocator >::GetMatrix	(	int	i,
		int	j
	)		const

inline

Access to an underlying matrix.

Returns the underlying matrix (i, j).

Parameters

[in]	i	row index.
[in]	j	column index.

Returns: The matrix collection (i, j).

Definition at line 227 of file MatrixCollectionInline.cxx.

◆ GetMmatrix()

template<class T , class Prop , class Storage , class Allocator >

int Seldon::MatrixCollection< T, Prop, Storage, Allocator >::GetMmatrix

inline

Returns the number of rows.

Returns: the total number of rows. It is the sum of the number of rows in the underlying matrices.

Definition at line 81 of file MatrixCollectionInline.cxx.

◆ GetN() [1/4]

template<class T , class Prop , class Storage , class Allocator >

int Seldon::MatrixCollection< T, Prop, Storage, Allocator >::GetN

inline

Returns the number of columns.

Returns: the total number of columns. It is the sum of the number of columns in the underlying matrices.

Definition at line 113 of file MatrixCollectionInline.cxx.

◆ GetN() [2/4]

template<class T >

int Seldon::VirtualMatrix< T >::GetN ( const CBLAS_TRANSPOSE & status ) const

inlineinherited

Returns the number of columns of the matrix possibly transposed.

Parameters

status assumed status about the transposition of the matrix.

Returns: The number of columns of the possibly-transposed matrix.

Definition at line 137 of file Matrix_BaseInline.cxx.

◆ GetN() [3/4]

template<class T >

int Seldon::VirtualMatrix< T >::GetN ( const Seldon::SeldonTranspose & status ) const

inlineinherited

Returns the number of columns of the matrix possibly transposed.

Parameters

status assumed status about the transposition of the matrix.

Returns: The number of columns of the possibly-transposed matrix.

Definition at line 107 of file Matrix_BaseInline.cxx.

◆ GetN() [4/4]

template<class T , class Prop , class Storage , class Allocator >

int Seldon::MatrixCollection< T, Prop, Storage, Allocator >::GetN ( int j ) const

inline

Returns the number of columns in an underlying matrix.

Parameters

[in] j column index of the underlying matrix.

Returns: The number of columns in the underlying matrices with column index j.

Definition at line 138 of file MatrixCollectionInline.cxx.

◆ GetNmatrix()

template<class T , class Prop , class Storage , class Allocator >

int Seldon::MatrixCollection< T, Prop, Storage, Allocator >::GetNmatrix

inline

Returns the number of columns.

Returns: the total number of columns. It is the sum of the number of columns in the underlying matrices.

Definition at line 125 of file MatrixCollectionInline.cxx.

◆ GetSize()

template<class T , class Prop , class Storage , class Allocator >

int Seldon::MatrixCollection< T, Prop, Storage, Allocator >::GetSize

inline

Returns the number of elements stored in memory.

Returns: The number of elements stored in memory.

Definition at line 157 of file MatrixCollectionInline.cxx.

◆ Nullify() [1/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::MatrixCollection< T, Prop, Storage, Allocator >::Nullify

Clears the matrix.

Destructs the matrix.

Warning: On exit, the matrix is an empty 0x0 matrix.

Definition at line 109 of file MatrixCollection.cxx.

◆ Nullify() [2/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::MatrixCollection< T, Prop, Storage, Allocator >::Nullify	(	int	i,
		int	j
	)

Clears a given underlying matrix.

Parameters

[in]	i	row of the underlying matrix to be nullified.
[in]	j	column of the underlying matrix to be nullified.

Definition at line 132 of file MatrixCollection.cxx.

◆ operator()()

template<class T , class Prop , class Storage , class Allocator >

MatrixCollection< T, Prop, Storage, Allocator >::value_type Seldon::MatrixCollection< T, Prop, Storage, Allocator >::operator()	(	int	i,
		int	j
	)		const

Access operator.

Returns the value of element (i, j).

Parameters

[in]	i	row index.
[in]	j	column index.

Returns: Element (i, j) of the matrix.

Definition at line 303 of file MatrixCollection.cxx.

◆ operator=()

template<class T , class Prop , class Storage , class Allocator >

MatrixCollection< T, Prop, Storage, Allocator > & Seldon::MatrixCollection< T, Prop, Storage, Allocator >::operator= ( const MatrixCollection< T, Prop, Storage, Allocator > & A )

Duplicates a matrix collection (assignment operator).

Parameters

[in] A matrix collection to be copied.

Note: Memory is duplicated: A is therefore independent from the current instance after the copy.

Definition at line 343 of file MatrixCollection.cxx.

◆ Print() [1/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::MatrixCollection< T, Prop, Storage, Allocator >::Print

Displays the matrix collection on the standard output.

Displays elements on the standard output, in text format.

Definition at line 390 of file MatrixCollection.cxx.

◆ Print() [2/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::MatrixCollection< T, Prop, Storage, Allocator >::Print	(	int	i,
		int	j
	)		const

Displays an underlying matrix on the standard output.

Parameters

[in]	m	row index of the underlying matrix.
[in]	n	column index of the underlying matrix.

Definition at line 408 of file MatrixCollection.cxx.

◆ Read() [1/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::MatrixCollection< T, Prop, Storage, Allocator >::Read ( istream & FileStream )

Reads the matrix collection from an input stream.

Reads a matrix collection stored in binary format from a stream. The number of rows of matrices (integer) and the number of columns of matrices (integer) are read, and the underlying matrices are then read in the same order as it should be in memory (e.g. row-major storage).

Parameters

[in,out] FileStream input stream.

Definition at line 602 of file MatrixCollection.cxx.

◆ Read() [2/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::MatrixCollection< T, Prop, Storage, Allocator >::Read ( string FileName )

Reads the matrix collection from a file.

Reads a matrix collection stored in binary format in a file. The number of rows of matrices (integer) and the number of columns of matrices (integer) are read, and the underlying matrices are then read in the same order as it should be in memory (e.g. row-major storage).

Parameters

[in] FileName input file name.

Definition at line 575 of file MatrixCollection.cxx.

◆ Reallocate()

template<class T , class Prop , class Storage , class Allocator >

void Seldon::MatrixCollection< T, Prop, Storage, Allocator >::Reallocate	(	int	i,
		int	j
	)

Reallocates memory to resize the matrix collection.

On exit, the matrix is a matrix collection with i x j underlying matrices.

Parameters

[in]	i	number of rows of matrices.
[in]	j	number of columns of matrices.

Warning: Depending on your allocator, data may be lost.

Definition at line 164 of file MatrixCollection.cxx.

◆ SetMatrix() [1/2]

template<class T , class Prop , class Storage , class Allocator >

template<class T0 , class Prop0 , class Allocator0 >

void Seldon::MatrixCollection< T, Prop, Storage, Allocator >::SetMatrix	(	int	i,
		int	j,
		const Matrix< T0, Prop0, RowSparse, Allocator0 > &	A
	)

Sets an underlying matrix in the matrix collection.

Parameters

[in]	i	row of the underlying matrix to be set.
[in]	j	column of the underlying matrix to be set.
[in]	matrix	new value for the underlying matrix.

Definition at line 245 of file MatrixCollection.cxx.

◆ SetMatrix() [2/2]

template<class T , class Prop , class Storage , class Allocator >

template<class T0 , class Prop0 , class Storage0 , class Allocator0 >

void Seldon::MatrixCollection< T, Prop, Storage, Allocator >::SetMatrix	(	int	i,
		int	j,
		const Matrix< T0, Prop0, Storage0, Allocator0 > &	A
	)

Sets an underlying matrix in the matrix collection.

Parameters

[in]	i	row of the underlying matrix to be set.
[in]	j	column of the underlying matrix to be set.
[in]	matrix	new value for the underlying matrix.

Definition at line 190 of file MatrixCollection.cxx.

◆ Write() [1/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::MatrixCollection< T, Prop, Storage, Allocator >::Write	(	ostream &	FileStream,
		bool	with_size = `true`
	)		const

Writes the matrix collection to an output stream.

Writes the matrix collection to an output stream in binary format. The number of rows of matrices (integer) and the number of columns of matrices (integer) are written, and the underlying matrices are then written in the same order as in memory (e.g. row-major storage).

Parameters

[in,out]	FileStream	output stream.
[in]	with_size	if set to 'false', the dimensions of the matrix are not saved.

Definition at line 467 of file MatrixCollection.cxx.

◆ Write() [2/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::MatrixCollection< T, Prop, Storage, Allocator >::Write	(	string	FileName,
		bool	with_size
	)		const

Writes the matrix collection in a file.

Stores the matrix collection in a file in binary format. The number of rows of matrices (integer) and the number of columns of matrices (integer) are written, and the underlying matrices are then written in the same order as in memory (e.g. row-major storage).

Parameters

[in]	FileName	output file name.
[in]	with_size	if set to 'false', the dimensions of the matrix are not saved.

Definition at line 438 of file MatrixCollection.cxx.

◆ WriteText() [1/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::MatrixCollection< T, Prop, Storage, Allocator >::WriteText ( ostream & FileStream ) const

Writes the matrix collection to an output stream.

Stores the matrix to an output stream in text format. Only the underlying matrices are written, without the dimensions. Each row is written on a single line and elements of a row are delimited by tabulations.

Parameters

[in,out] FileStream output stream.

Definition at line 539 of file MatrixCollection.cxx.

◆ WriteText() [2/2]

template<class T , class Prop , class Storage , class Allocator >

void Seldon::MatrixCollection< T, Prop, Storage, Allocator >::WriteText ( string FileName ) const

Writes the matrix collection in a file.

Stores the matrix in a file in text format. Only the underlying matrices are written, without the dimensions. Each row is written on a single line and elements of a row are delimited by tabulations.

Parameters

[in] FileName output file name.

Definition at line 510 of file MatrixCollection.cxx.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Public Attributes

Protected Attributes

Detailed Description

template<class T, class Prop, class Storage, class Allocator = NewAlloc<T>> class Seldon::MatrixCollection< T, Prop, Storage, Allocator >

Constructor & Destructor Documentation

◆ MatrixCollection() [1/2]

◆ MatrixCollection() [2/2]

Member Function Documentation

◆ Clear()

◆ Copy()

◆ GetData()

◆ GetDataConst()

◆ GetDataConstVoid()

◆ GetDataSize()

◆ GetDataVoid()

◆ GetM() [1/4]

◆ GetM() [2/4]

◆ GetM() [3/4]

◆ GetM() [4/4]

◆ GetMatrix() [1/2]

◆ GetMatrix() [2/2]

◆ GetMmatrix()

◆ GetN() [1/4]

◆ GetN() [2/4]

◆ GetN() [3/4]

◆ GetN() [4/4]

◆ GetNmatrix()

◆ GetSize()

◆ Nullify() [1/2]

◆ Nullify() [2/2]

◆ operator()()

◆ operator=()

◆ Print() [1/2]

◆ Print() [2/2]

◆ Read() [1/2]

◆ Read() [2/2]

◆ Reallocate()

◆ SetMatrix() [1/2]

◆ SetMatrix() [2/2]

◆ Write() [1/2]

◆ Write() [2/2]

◆ WriteText() [1/2]

◆ WriteText() [2/2]

template<class T, class Prop, class Storage, class Allocator = NewAlloc<T>>
class Seldon::MatrixCollection< T, Prop, Storage, Allocator >
