Base class for polynomial eigenvalue solver. More...
#include <PolynomialEigenvalueSolver.hxx>

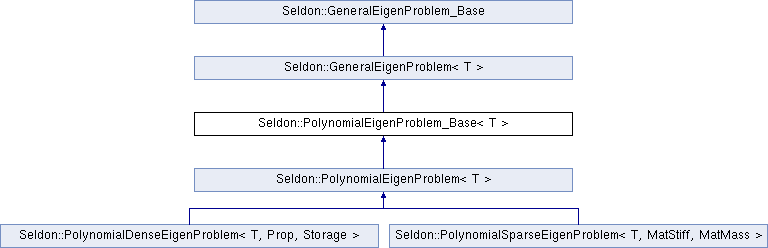

Inheritance diagram for Seldon::PolynomialEigenProblem_Base< T >:
Public Types | |
| typedef ClassComplexType< T >::Tcplx | Tcplx |
| typedef ClassComplexType< T >::Treal | Treal |
| enum | { SMALL_EIGENVALUES, LARGE_EIGENVALUES, CENTERED_EIGENVALUES } |
| parts of the spectrum (near from 0, at infinity or around a given value) More... | |
| enum | { SORTED_REAL, SORTED_IMAG, SORTED_MODULUS, SORTED_USER } |
| different sorting strategies | |
Public Member Functions | |
| PolynomialEigenProblem_Base () | |
| default constructor | |
| bool | UseSpectralTransformation () const |
| returns true if a spectral transformation has to be used | |
| void | SetSpectralTransformation (bool t=true) |
| enables a spectral transformation | |
| SlepcParamPep & | GetSlepcParameters () |
| returns object storing slepc parameters | |
| FeastParam & | GetFeastParameters () |
| returns object storing Feast parameters | |
| int | GetPolynomialDegree () const |
| returns the polynomial degree | |
| void | SetDiagonalMass (bool diag=true) |
| sets a diagonal mass | |
| bool | DiagonalMass () |
| returns true if the mass is diagonal | |
| virtual void | ComputeOperator (int num, const Vector< T > &coef) |
| to overload | |
| virtual void | MltOperator (int num, const SeldonTranspose &, const Vector< T > &X, Vector< T > &Y) |
| to overload | |
| virtual void | FactorizeMass () |
| to overload | |
| virtual void | SolveMass (const SeldonTranspose &, const Vector< T > &x, Vector< T > &y) |
| to overload for non-diagonal mass | |
| virtual void | FactorizeOperator (const Vector< T > &coef) |
| virtual void | SolveOperator (const SeldonTranspose &, const Vector< T > &X, Vector< T > &Y) |
| T | GetShiftValue () const |
| returns the shift value used More... | |
| T | GetImagShiftValue () const |
| returns the imaginary part of shift value used More... | |
| void | SetShiftValue (const T &) |
| Sets the real part of shift value. | |
| void | SetImagShiftValue (const T &) |
| Sets the imaginary part of shift value. | |
| void | GetComplexShift (const Treal &, const Treal &, Tcplx &) const |
| forms the complex shift from real and imaginary part | |
| void | GetComplexShift (const Tcplx &, const Tcplx &, Tcplx &) const |
| forms the complex shift from real and imaginary part | |
| void | SetTypeSpectrum (int type, const T &val, int type_sort=SORTED_MODULUS) |
| sets which eigenvalues are searched More... | |
| void | SetTypeSpectrum (int type, const complex< T > &val, int type_sort=SORTED_MODULUS) |
| sets which eigenvalues are searched More... | |
| void | SetUserComparisonClass (EigenvalueComparisonClass< T > *ev) |
| sets the class where two eigenvalues can be compared | |
| void | FillComplexEigenvectors (int m, const Tcplx &Emid, Treal eps, const Vector< Tcplx > &lambda_cplx, const Matrix< Tcplx, General, ColMajor > &Ecplx, Vector< T > &Lr, Vector< T > &Li, Matrix< T, General, ColMajor > &E) |
| void | FillComplexEigenvectors (int m, const complex< double > &Emid, double eps, const Vector< complex< double > > &lambda_cplx, const Matrix< complex< double >, General, ColMajor > &Ecplx, Vector< double > &Lr, Vector< double > &Li, Matrix< double, General, ColMajor > &E) |
| Fills arrays Lr, Li (eigenvalues) and E (eigenvectors) from complex eigenvectors. More... | |
| void | FillComplexEigenvectors (int m, const complex< double > &Emid, double eps, const Vector< complex< double > > &lambda_cplx, const Matrix< complex< double >, General, ColMajor > &Ecplx, Vector< complex< double > > &Lr, Vector< complex< double > > &Li, Matrix< complex< double >, General, ColMajor > &E) |
| Fills arrays Lr, Li (eigenvalues) and E (eigenvectors) from complex eigenvectors. | |
| virtual void | DistributeEigenvectors (Matrix< T, General, ColMajor > &eigen_vec) |
| changes final eigenvectors if needed | |
| int | GetRankCommunicator () const |
| returns rank for the solver communicator | |
| int | GetGlobalRankCommunicator () const |
| returns rank for the global communicator | |
| int | GetNbAskedEigenvalues () const |
| returns the number of eigenvalues asked by the user | |
| void | SetNbAskedEigenvalues (int n) |
| sets the number of eigenvalues to compute | |
| int | GetTypeSpectrum () const |
| returns the spectrum desired (large, small eigenvalues, etc) | |
| int | GetTypeSorting () const |
| returns how eigenvalues are sorted (real, imaginary part or modulus) | |
| void | SetStoppingCriterion (double eps) |
| modifies the stopping critertion | |
| double | GetStoppingCriterion () const |
| returns the stopping criterion | |
| void | SetNbMaximumIterations (int n) |
| sets the maximal number of iterations allowed for the iterative algorithm | |
| int | GetNbMaximumIterations () const |
| returns the maximal number of iterations allowed for the iterative algorithm | |
| int | GetNbMatrixVectorProducts () const |
| returns the number of matrix-vector products performed since last call to Init | |
| int | GetNbArnoldiVectors () const |
| returns the number of Arnoldi vectors to use | |
| void | SetNbArnoldiVectors (int n) |
| sets the number of Arnoldi vectors to use | |
| int | GetM () const |
| returns number of rows | |
| int | GetGlobalM () const |
| returns global number of rows | |
| int | GetN () const |
| returns number of columns | |
| int | GetPrintLevel () const |
| returns level of verbosity | |
| void | SetPrintLevel (int lvl) |
| sets the level of verbosity | |
| void | IncrementProdMatVect () |
| increment of the number of matrix vector products | |
| int | GetNbLinearSolves () const |
| returns the number of linear solves | |
| void | IncrementLinearSolves () |
| increments the number of linear solves | |
| void | Init (int n) |
| initialisation of the size of the eigenvalue problem | |
| virtual bool | IsSymmetricProblem () const |
| virtual bool | IsHermitianProblem () const |
Protected Attributes | |
| bool | use_spectral_transfo |
| if true teta is searched (lambda = shift + 1/teta) | |
| int | pol_degree |
| polynomial degree | |
| SlepcParamPep | slepc_param |
| Slepc parameters. | |
| FeastParam | feast_param |
| bool | diagonal_mass |
| mass diagonal ? | |
| Vector< T > | invDiag |
| T | shift |
| shift sigma (if type_spectrum = centered_eigenvalues) | |
| T | shift_imag |
| EigenvalueComparisonClass< T > * | compar_eigenval |
| class for comparing eigenvalues | |
| int | nb_eigenvalues_wanted |
| number of eigenvalues to be computed | |
| int | nb_arnoldi_vectors |
| number of Arnoldi vectors | |
| bool | automatic_selection_arnoldi_vectors |
| if true nb_arnoldi_vectors is automatically computed | |
| int | type_spectrum_wanted |
| which spectrum ? Near from Zero ? Near from Infinity ? or near from a value ? | |
| int | type_sort_eigenvalues |
| large eigenvalues because of their real part, imaginary part or magnitude ? | |
| double | stopping_criterion |
| threshold for Arpack's iterative process | |
| int | nb_maximum_iterations |
| Maximal number of iterations. | |
| int | nb_linear_solves |
| number of linear solves | |
| int | display_every |
| int | print_level |
| int | nb_prod |
| number of matrix-vector products | |
| int | n_ |
| size of the problem | |
| int | nglob |
Detailed Description
template<class T>
class Seldon::PolynomialEigenProblem_Base< T >
Base class for polynomial eigenvalue solver.
Definition at line 25 of file PolynomialEigenvalueSolver.hxx.
Member Enumeration Documentation
◆ anonymous enum
|
inherited |
parts of the spectrum (near from 0, at infinity or around a given value)
SMALL_EIGENVALUES : seeking eigenvalues near 0 LARGE_EIGENVALUES : seeking largest eigenvalues CENTERED_EIGENVALUES : seeking eigenvalues near the shift sigma
Definition at line 245 of file VirtualEigenvalueSolver.hxx.
Member Function Documentation
◆ FillComplexEigenvectors()
|
inherited |
Fills arrays Lr, Li (eigenvalues) and E (eigenvectors) from complex eigenvectors.
Lapack convention is used, a complex eigenvector is stored with two columns (real and imaginary part)
Definition at line 633 of file VirtualEigenvalueSolver.cxx.
◆ GetImagShiftValue()
template<class T >
|
inherited |
returns the imaginary part of shift value used
If type_spectrum_wanted is set to CENTERED_EIGENVALUES, we search closest eigenvalues to the shift value. Matrix (A - (shift + i shift_imag)*I)^{-1} will be used instead of A shift_imag is accessed only for real unsymmetric problems
Definition at line 497 of file VirtualEigenvalueSolver.cxx.
◆ GetShiftValue()
template<class T >
|
inherited |
returns the shift value used
If type_spectrum_wanted is set to CENTERED_EIGENVALUES, we search closest eigenvalues to the shift value. Matrix (A - (shift + i shift_imag)*I)^{-1} will be used instead of A
Definition at line 483 of file VirtualEigenvalueSolver.cxx.
◆ SetTypeSpectrum() [1/2]
template<class T >
|
inherited |
sets which eigenvalues are searched
You can ask small eigenvalues, large, or eigenvalues close to the shift.
Definition at line 559 of file VirtualEigenvalueSolver.cxx.
◆ SetTypeSpectrum() [2/2]
template<class T >
|
inherited |
sets which eigenvalues are searched
You can ask small eigenvalues, large, or eigenvalues close to the shift.
Definition at line 544 of file VirtualEigenvalueSolver.cxx.
The documentation for this class was generated from the following files:
- computation/interfaces/eigenvalue/PolynomialEigenvalueSolver.hxx
- computation/interfaces/eigenvalue/PolynomialEigenvalueSolver.cxx
