Sub-matrix base class. More...

#include <SubMatrix_Base.hxx>

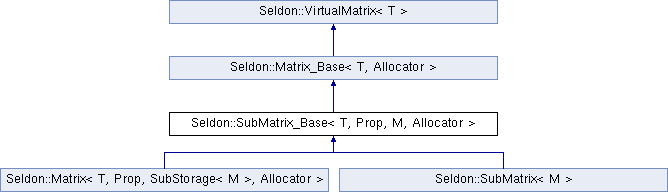

Inheritance diagram for Seldon::SubMatrix_Base< T, Prop, M, Allocator >:

Public Types
typedef M::value_type	value_type

typedef M::pointer	pointer

typedef M::const_pointer	const_pointer

typedef M::reference	reference

typedef M::const_reference	const_reference

typedef M::entry_type	entry_type

typedef M::access_type	access_type

typedef M::const_access_type	const_access_type

typedef M	storage

Public Member Functions
	SubMatrix_Base (M &A, Vector< int > &row_list, Vector< int > &column_list)
	Main constructor.

	~SubMatrix_Base ()
	Destructor.

access_type	operator() (int i, int j)
	Access operator. More...

const_access_type	operator() (int i, int j) const
	Access operator. More...

entry_type &	Val (int i, int j)
	Access operator. More...

const entry_type &	Val (int i, int j) const
	Access operator. More...

int	GetM () const
	Returns the number of rows. More...

int	GetN () const
	Returns the number of columns. More...

int	GetM (const SeldonTranspose &status) const
	Returns the number of rows of the sub-matrix possibly transposed. More...

int	GetN (const SeldonTranspose &status) const
	Returns the number of columns of the sub-matrix possibly transposed. More...

void	Print () const
	Prints a matrix on screen. More...

pointer	GetData () const
	Returns a pointer to the data array. More...

const_pointer	GetDataConst () const
	Returns a const pointer to the data array. More...

void *	GetDataVoid () const
	Returns a pointer of type "void*" to the data array. More...

const void *	GetDataConstVoid () const
	Returns a pointer of type "const void*" to the data array. More...

int	GetM (const CBLAS_TRANSPOSE &status) const
	Returns the number of rows of the matrix possibly transposed. More...

int	GetN (const CBLAS_TRANSPOSE &status) const
	Returns the number of columns of the matrix possibly transposed. More...

long	GetSize () const
	Returns the number of elements in the matrix. More...

Protected Attributes
M *	matrix_
	Pointer to the base matrix.

Vector< int >	row_list_
	List of rows.

Vector< int >	column_list_
	List of columns.

pointer	data_

int	m_

int	n_

Detailed Description

template<class T, class Prop, class M, class Allocator>
class Seldon::SubMatrix_Base< T, Prop, M, Allocator >

Sub-matrix base class.

Definition at line 29 of file SubMatrix_Base.hxx.

Member Function Documentation

◆ GetData()

template<class T , class Allocator >

Matrix_Base< T, Allocator >::pointer Seldon::Matrix_Base< T, Allocator >::GetData

inlineinherited

Returns a pointer to the data array.

Returns a pointer to data, i.e. the data array 'data_'.

Returns: A pointer to the data array.

Definition at line 241 of file Matrix_BaseInline.cxx.

◆ GetDataConst()

template<class T , class Allocator >

Matrix_Base< T, Allocator >::const_pointer Seldon::Matrix_Base< T, Allocator >::GetDataConst

inlineinherited

Returns a const pointer to the data array.

Returns a const pointer to data, i.e. the data array 'data_'.

Returns: A const pointer to the data array.

Definition at line 254 of file Matrix_BaseInline.cxx.

◆ GetDataConstVoid()

template<class T , class Allocator >

const void * Seldon::Matrix_Base< T, Allocator >::GetDataConstVoid

inlineinherited

Returns a pointer of type "const void*" to the data array.

Returns a pointer of type "const void*" to data, i.e. the data array 'data_'.

Returns: A const pointer of type "void*" to the data array.

Definition at line 280 of file Matrix_BaseInline.cxx.

◆ GetDataVoid()

template<class T , class Allocator >

void * Seldon::Matrix_Base< T, Allocator >::GetDataVoid

inlineinherited

Returns a pointer of type "void*" to the data array.

Returns a pointer of type "void*" to data, i.e. the data array 'data_'.

Returns: A pointer of type "void*" to the data array.

Definition at line 267 of file Matrix_BaseInline.cxx.

◆ GetM() [1/3]

template<class T , class Prop , class M , class Allocator >

int Seldon::SubMatrix_Base< T, Prop, M, Allocator >::GetM

inline

Returns the number of rows.

Returns: The number of rows.

Definition at line 137 of file SubMatrix_BaseInline.cxx.

◆ GetM() [2/3]

template<class T >

int Seldon::VirtualMatrix< T >::GetM ( const CBLAS_TRANSPOSE & status ) const

inlineinherited

Returns the number of rows of the matrix possibly transposed.

Parameters

status assumed status about the transposition of the matrix.

Returns: The number of rows of the possibly-transposed matrix.

Definition at line 122 of file Matrix_BaseInline.cxx.

◆ GetM() [3/3]

template<class T , class Prop , class M , class Allocator >

int Seldon::SubMatrix_Base< T, Prop, M, Allocator >::GetM ( const SeldonTranspose & status ) const

inline

Returns the number of rows of the sub-matrix possibly transposed.

Parameters

status assumed status about the transposition of the sub-matrix.

Returns: The number of rows of the possibly-transposed sub-matrix.

Definition at line 161 of file SubMatrix_BaseInline.cxx.

◆ GetN() [1/3]

template<class T , class Prop , class M , class Allocator >

int Seldon::SubMatrix_Base< T, Prop, M, Allocator >::GetN

inline

Returns the number of columns.

Returns: The number of columns.

Definition at line 148 of file SubMatrix_BaseInline.cxx.

◆ GetN() [2/3]

template<class T >

int Seldon::VirtualMatrix< T >::GetN ( const CBLAS_TRANSPOSE & status ) const

inlineinherited

Returns the number of columns of the matrix possibly transposed.

Parameters

status assumed status about the transposition of the matrix.

Returns: The number of columns of the possibly-transposed matrix.

Definition at line 137 of file Matrix_BaseInline.cxx.

◆ GetN() [3/3]

template<class T , class Prop , class M , class Allocator >

int Seldon::SubMatrix_Base< T, Prop, M, Allocator >::GetN ( const SeldonTranspose & status ) const

inline

Returns the number of columns of the sub-matrix possibly transposed.

Parameters

status assumed status about the transposition of the sub-matrix.

Returns: The number of columns of the possibly-transposed sub-matrix.

Definition at line 177 of file SubMatrix_BaseInline.cxx.

◆ GetSize()

template<class T >

long Seldon::VirtualMatrix< T >::GetSize

inlineinherited

Returns the number of elements in the matrix.

Returns the number of elements in the matrix, i.e. the number of rows multiplied by the number of columns.

Returns: The number of elements in the matrix.

Definition at line 153 of file Matrix_BaseInline.cxx.

◆ operator()() [1/2]

template<class T , class Prop , class M , class Allocator >

SubMatrix_Base< T, Prop, M, Allocator >::access_type Seldon::SubMatrix_Base< T, Prop, M, Allocator >::operator()	(	int	i,
		int	j
	)

inline

Access operator.

Returns the value of element (i, j).

Parameters

[in]	i	row index.
[in]	j	column index.

Returns: Element (i, j) of the sub-matrix.

Definition at line 76 of file SubMatrix_BaseInline.cxx.

◆ operator()() [2/2]

template<class T , class Prop , class M , class Allocator >

SubMatrix_Base< T, Prop, M, Allocator >::const_access_type Seldon::SubMatrix_Base< T, Prop, M, Allocator >::operator()	(	int	i,
		int	j
	)		const

inline

Access operator.

Returns the value of element (i, j).

Parameters

[in]	i	row index.
[in]	j	column index.

Returns: Element (i, j) of the sub-matrix.

Definition at line 91 of file SubMatrix_BaseInline.cxx.

◆ Print()

template<class T , class Prop , class M , class Allocator >

void Seldon::SubMatrix_Base< T, Prop, M, Allocator >::Print

inline

Prints a matrix on screen.

Displays all elements on the standard output, in text format. Each row is displayed on a single line, and the elements of a row are delimited by tabulations.

Definition at line 192 of file SubMatrix_BaseInline.cxx.

◆ Val() [1/2]

template<class T , class Prop , class M , class Allocator >

SubMatrix_Base< T, Prop, M, Allocator >::entry_type & Seldon::SubMatrix_Base< T, Prop, M, Allocator >::Val	(	int	i,
		int	j
	)

inline

Access operator.

Returns the value of element (i, j).

Parameters

[in]	i	row index.
[in]	j	column index.

Returns: Element (i, j) of the sub-matrix.

Definition at line 106 of file SubMatrix_BaseInline.cxx.

◆ Val() [2/2]

template<class T , class Prop , class M , class Allocator >

const SubMatrix_Base< T, Prop, M, Allocator >::entry_type & Seldon::SubMatrix_Base< T, Prop, M, Allocator >::Val	(	int	i,
		int	j
	)		const

inline

Access operator.

Returns the value of element (i, j).

Parameters

[in]	i	row index.
[in]	j	column index.

Returns: Element (i, j) of the sub-matrix.

Definition at line 121 of file SubMatrix_BaseInline.cxx.

The documentation for this class was generated from the following files:

matrix/SubMatrix_Base.hxx
matrix/SubMatrix_BaseInline.cxx
